Front Passenger Side Power Window Does Not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

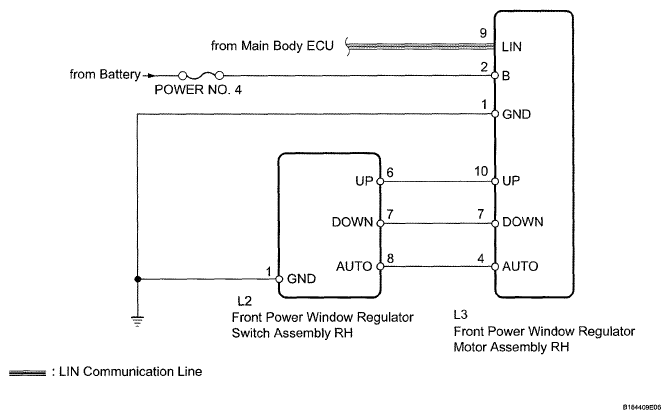

Fig 1: Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch Wiring Diagram
G05655804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
