Front Passenger Side Power Window Auto Up / Down Function Does Not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

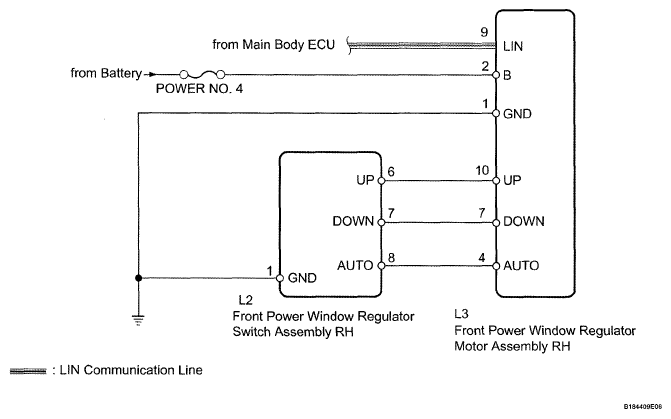

Fig 1: Front Power Window Motor Regulator Switch And Motor Assembly Wiring Diagram
G05655815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
