DTC C1251/51 Open in Pump Motor Circuit: Wiring Diagram

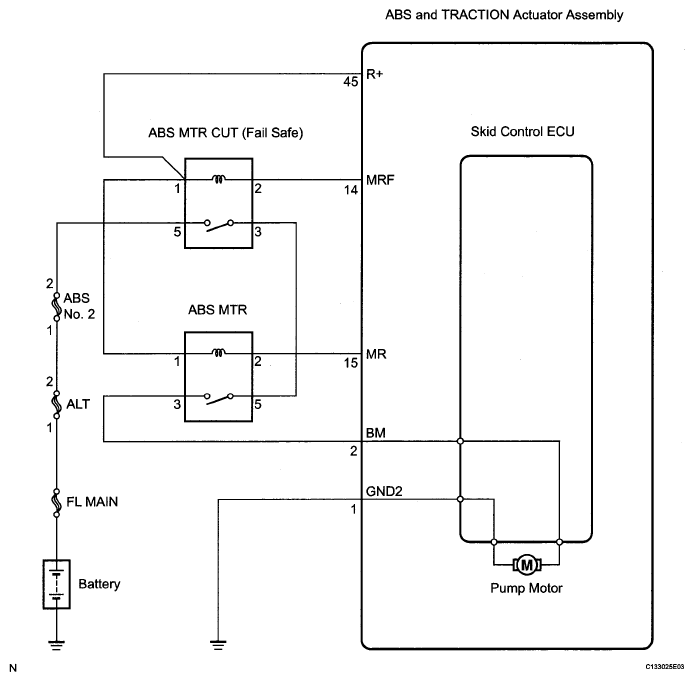

Fig 1: ABS Pump Motor - Wiring Diagram

G05235246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
