Security Indicator Light Circuit: Wiring Diagram

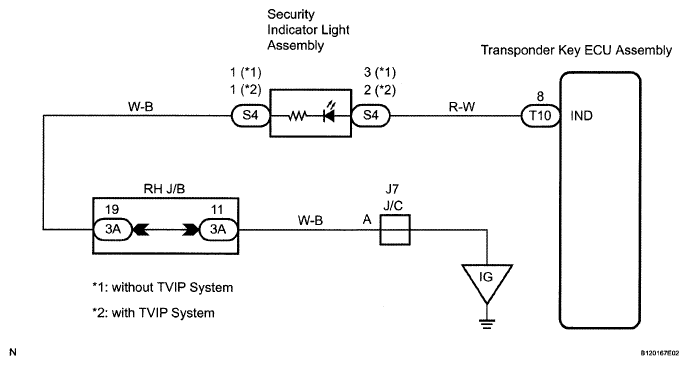

Fig 1: Security Indicator Light Wiring Diagram

G05195892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
