DTC P0571 Stop Light Switch Circuit Malfunction: Wiring Diagram

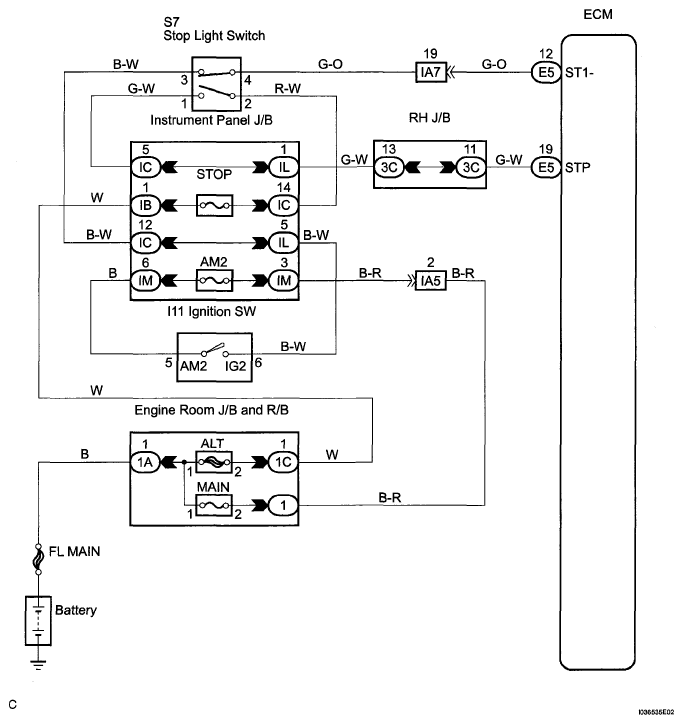

Fig 1: Stop Light Switch Wiring Diagram

G05236815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
