System Diagram

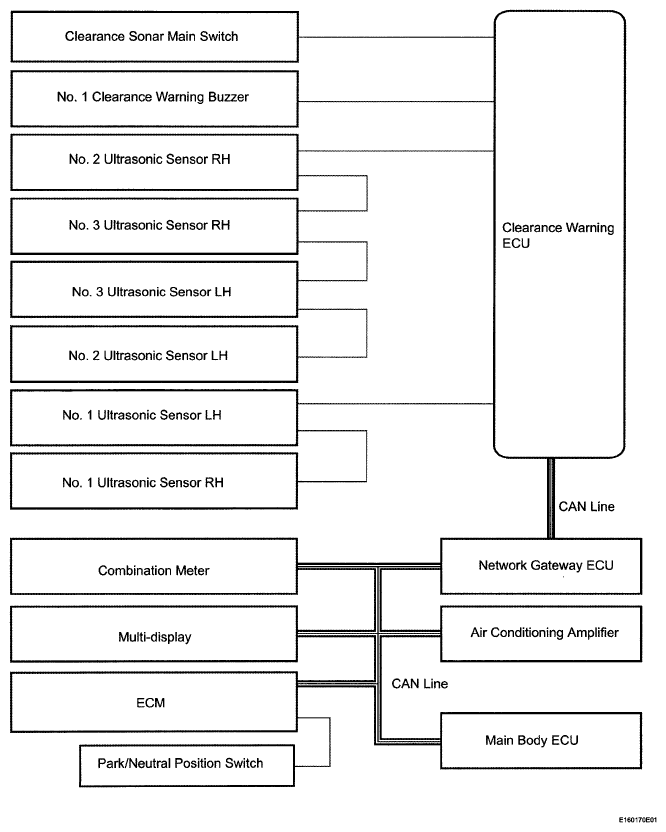

Fig 1: Intuitive Parking Assist System Diagram
G05639192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION CHART

Sender ECU Receiver ECU Signal Line
Combination Meter Clearance Warning ECU Vehicle speed signal CAN
ECM Clearance Warning ECU Shift position signal CAN
Air Conditioning Amplifier Clearance Warning ECU Outside temperature CAN
Main Body ECU Clearance Warning ECU
  • Dimmer signal
  • Destination signal Steering wheel symbol
 CAN
Clearance Warning ECU
  • Combination Meter
  • Multi-display
 Ultrasonic sensor detection signal CAN
