Home >> Toyota >> 2008 >> Highlander Base, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (2GR-FE Except Hybrid) - System Testing, On-Vehicle Inspection, Removal, Inspection And Installation >> VACUUM SWITCHING VALVE (Engine Mounting) >> Components

VACUUM SWITCHING VALVE (Engine Mounting): Components

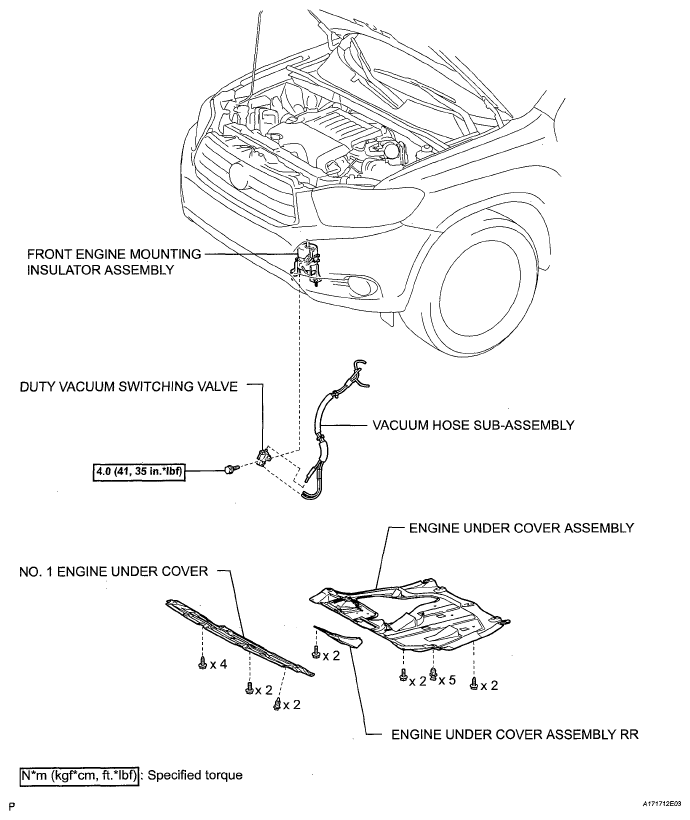

Fig 1: Vacuum Switching Valve (Engine Mounting) Replacement Components With Torque Specifications

G05413995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
