VACUUM SWITCHING VALVE (Engine Mounting): Installation

INSTALL DUTY VACUUM SWITCHING VALVE
1. Connect the vacuum hose sub-assembly to the duty vacuum switching valve.

  Fig 1: Identifying Vacuum Hose Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the hose to the duty vacuum switching valve.

  Fig 2: Identifying Duty Vacuum Switching Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the duty vacuum switching valve with a bolt.
  Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

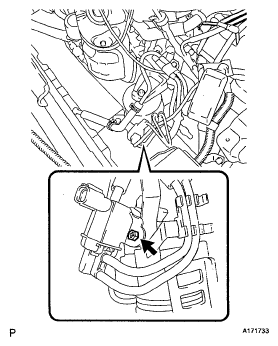

  Fig 3: Identifying Duty Vacuum Switching Valve Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the duty vacuum switching valve connector and clamp.

  Fig 4: Identifying Duty Vacuum Switching Valve Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VACUUM HOSE SUB-ASSEMBLY
1. Install the clamp of the vacuum hose sub-assembly to the front engine mounting insulator assembly.

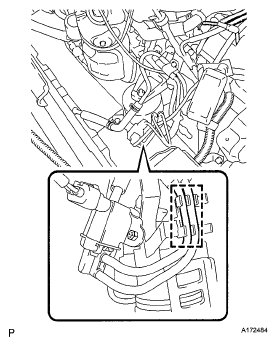

  Fig 5: Identifying Clamp Of Vacuum Hose Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 clamps.

  Fig 6: Identifying Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the vacuum hose sub-assembly to the air cleaner cap sub-assembly and vacuum switching valve.

  Fig 7: Identifying Vacuum Hose Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ENGINE UNDER COVER (See INSTALLATION )
INSTALL ENGINE UNDER COVER ASSEMBLY (See INSTALLATION )
