Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch: Wiring Diagram

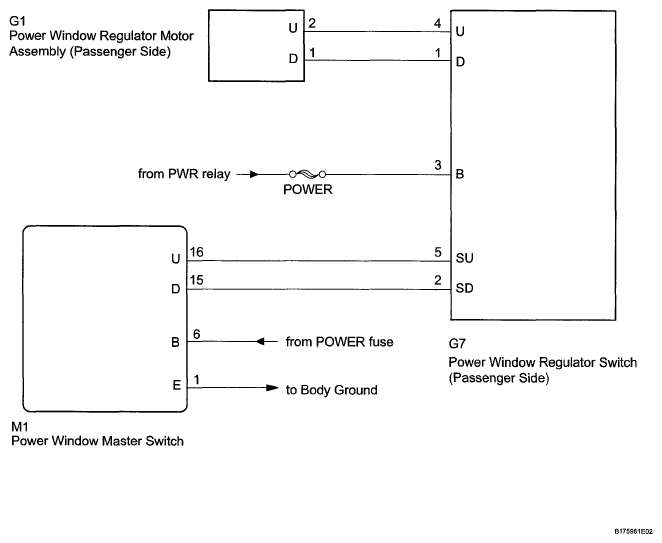

Fig 1: Identifying Power Window Regulator Master Switch Wiring Diagram
G05421126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
