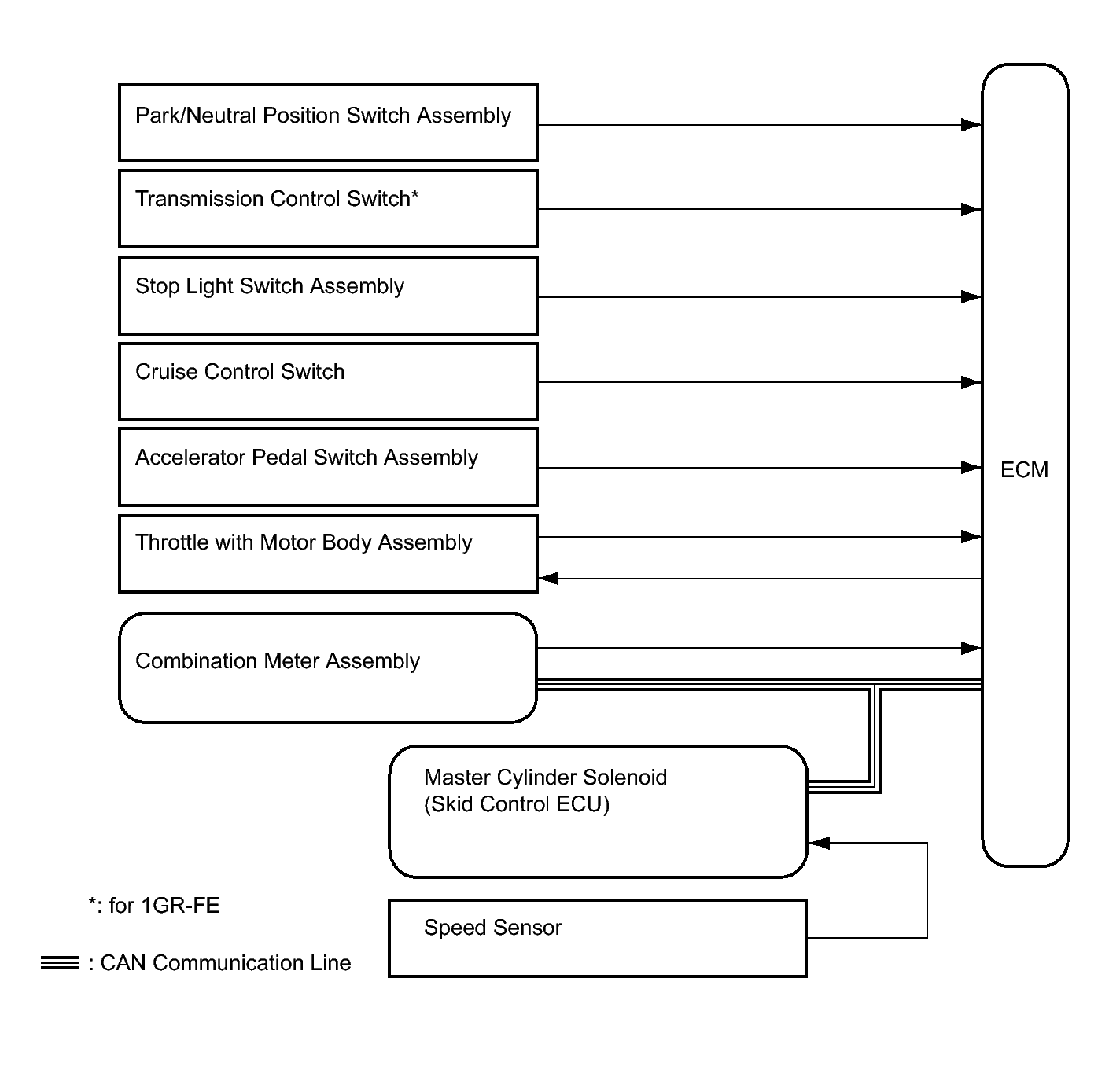

System Diagram
WARNING: This page is about a different car, the 2010 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 COMMUNICATION TABLE
| Sender |
Receiver |
Signal |
Line |
| ECM |
Combination Meter Assembly |
Cruise main indicator light signal |
CAN |
| Skid Control ECU |
ECM |
Vehicle stability control system operation signal |
CAN |
