Cruise Control Switch Circuit: Wiring Diagram

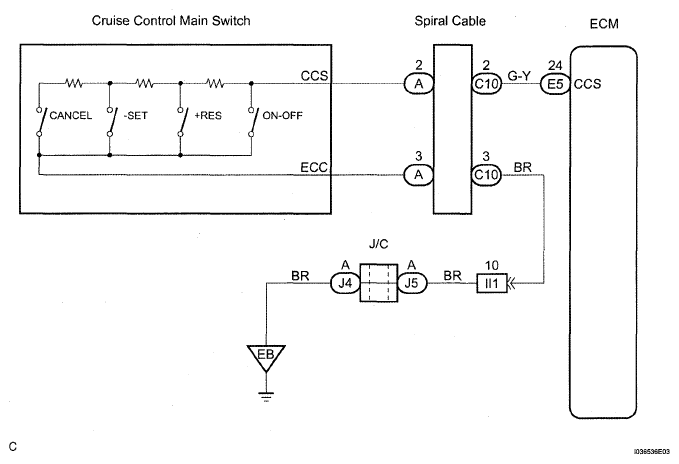

Fig 1: Cruise Control Switch Wiring Diagram

G05195925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
