Radio Receiver Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

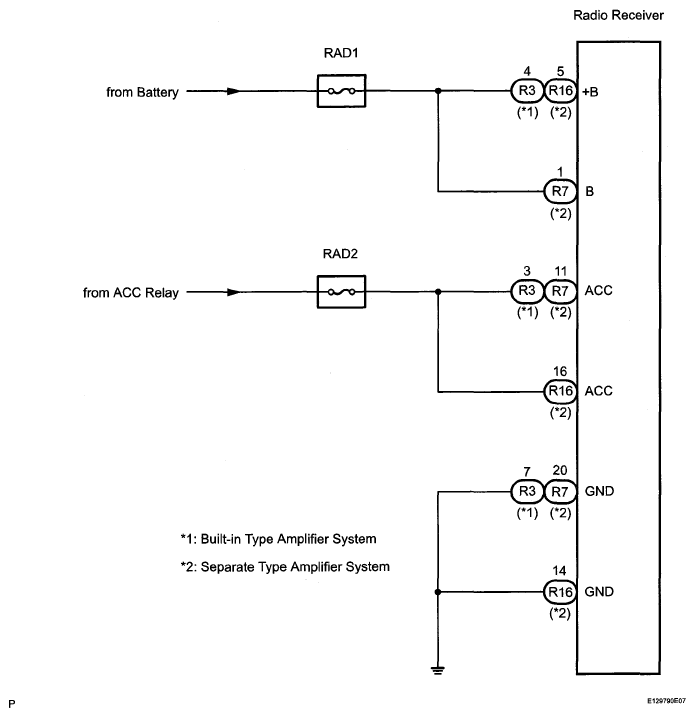

Fig 1: Radio Receiver Power Source Circuit - Wiring Diagram
G05132412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
