Parts Location

WARNING: This page is about a different car, the 2007 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

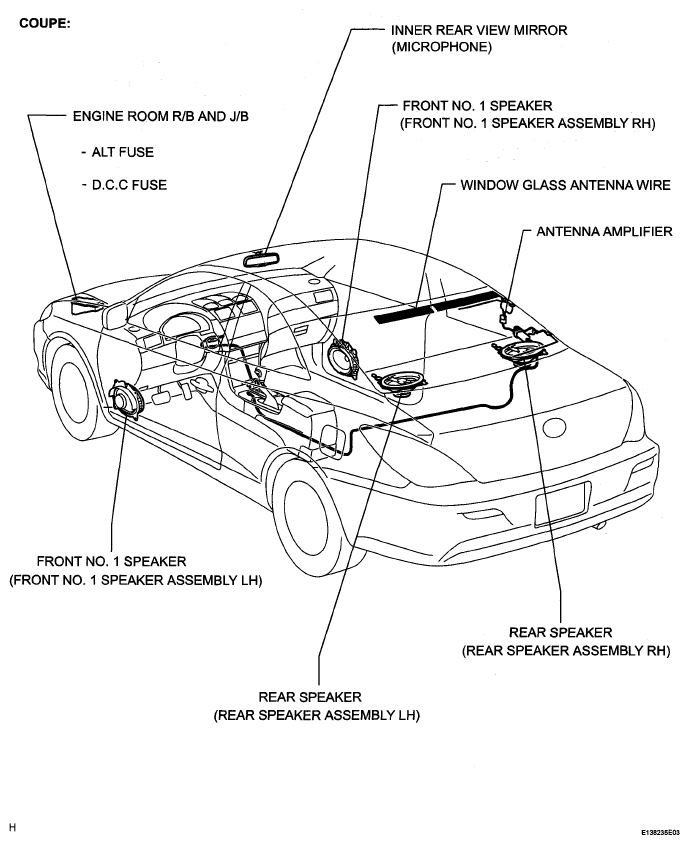

Fig 1: Identifying Audio And Visual System Components Location (1 Of 3)
G05132316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

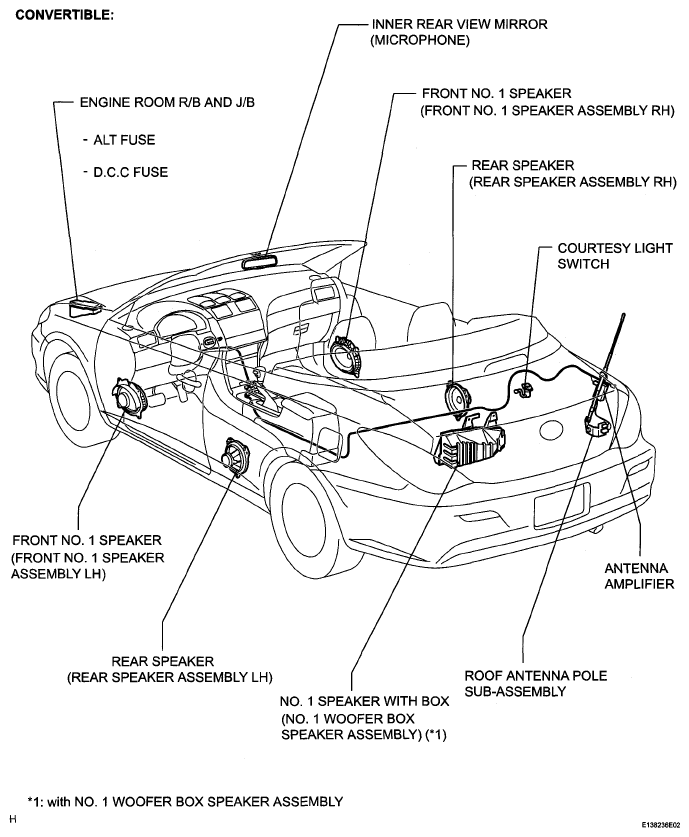

Fig 2: Identifying Audio And Visual System Components Location (2 Of 3)
G05132317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

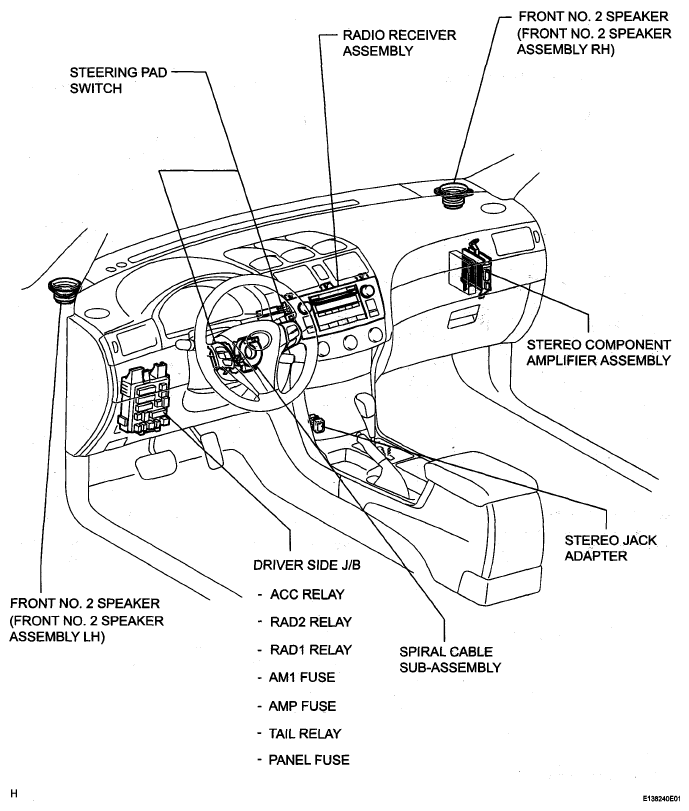

Fig 3: Identifying Audio And Visual System Components Location (3 Of 3)
G05132318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
