Parts Location

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

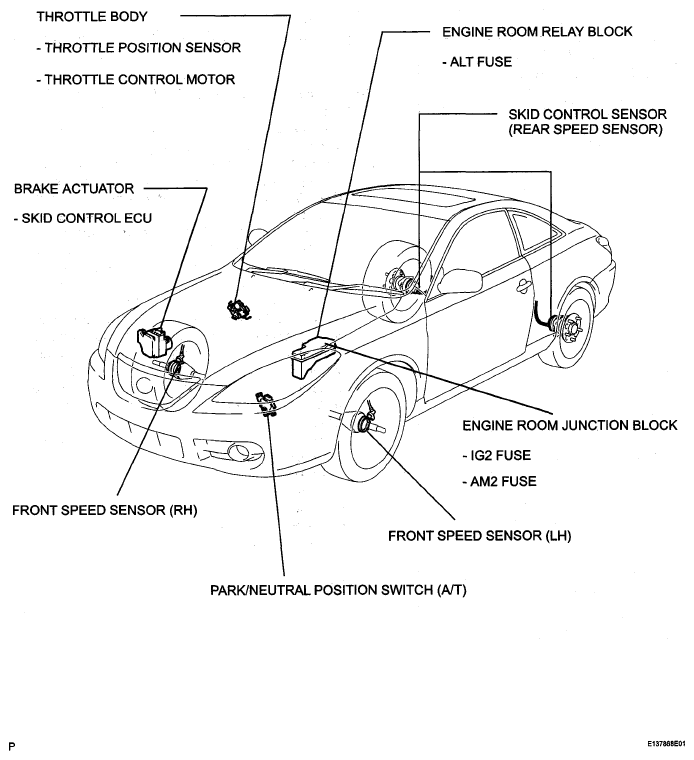

Fig 1: Identifying Cruise Control System Part Location (1 Of 2)
G05131875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

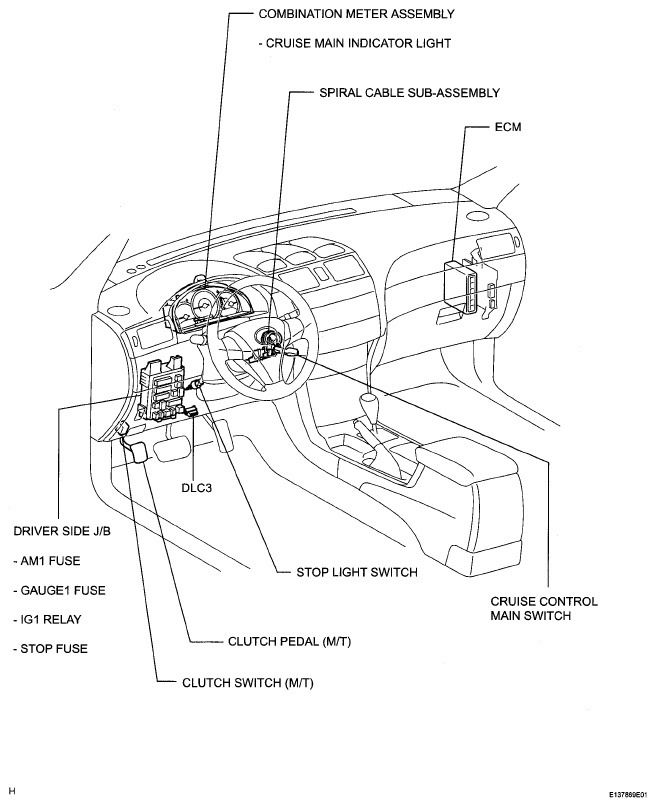

Fig 2: Identifying Cruise Control System Part Location (2 Of 2)
G05131876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
