Light Reminder and Key Reminder System: Notes

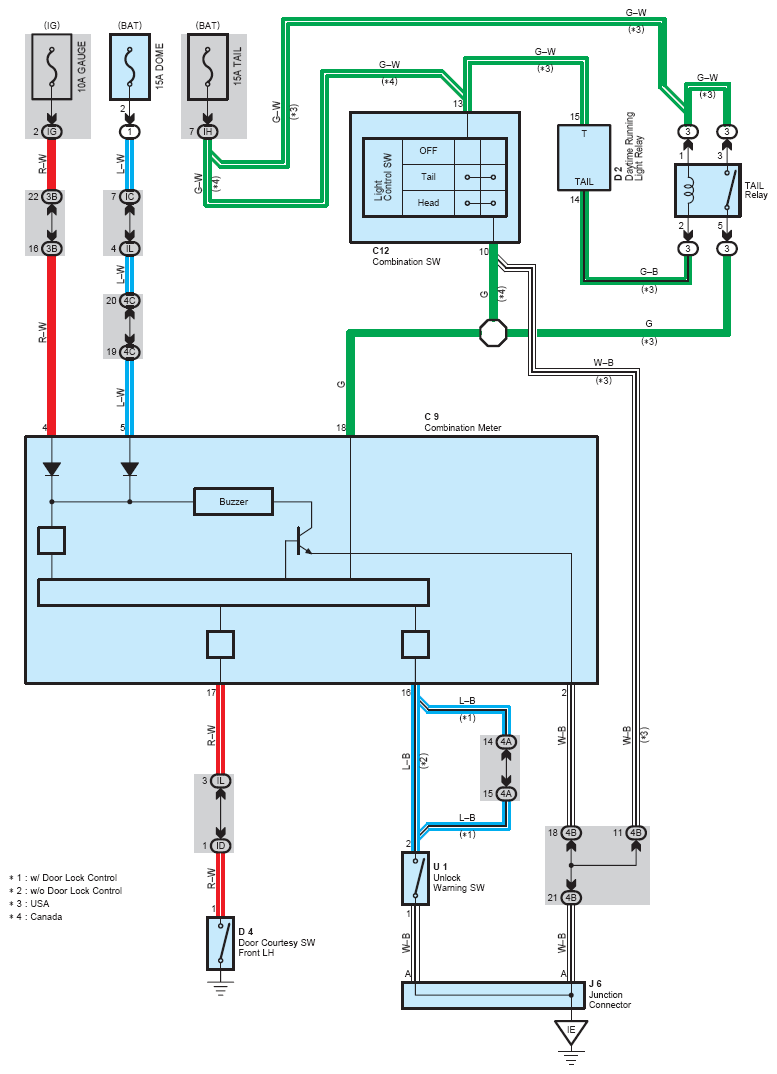

Fig 1: Light Reminder And Key Reminder - Circuit Diagram
G07604118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
