MIL Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

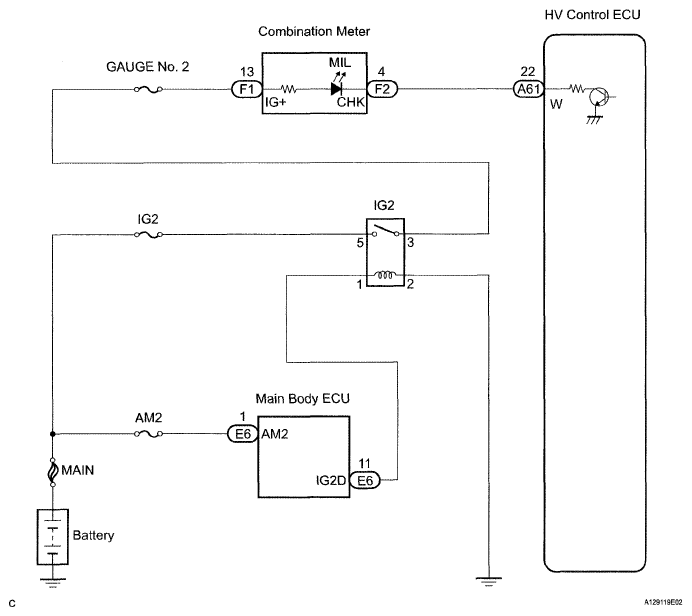

Fig 1: Malfunction Indicator Lamp Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
