Vehicle Identification And Serial Numbers

WARNING: This page is about a different variant/trim than selected.

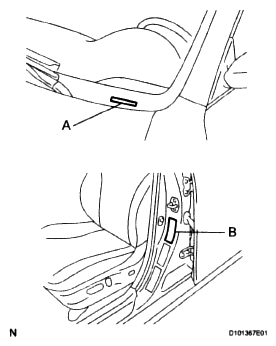

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.

      A: Vehicle Identification Number

      B: Certification Label

    Fig 1: Identifying Vehicle Identification Number And Certification Label
    G05007243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in the illustration.

      A: Engine Serial Number

      B. Transaxle Serial Number

    Fig 2: Identifying Engine Serial And Transaxle Serial Number
    G05007244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
