DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

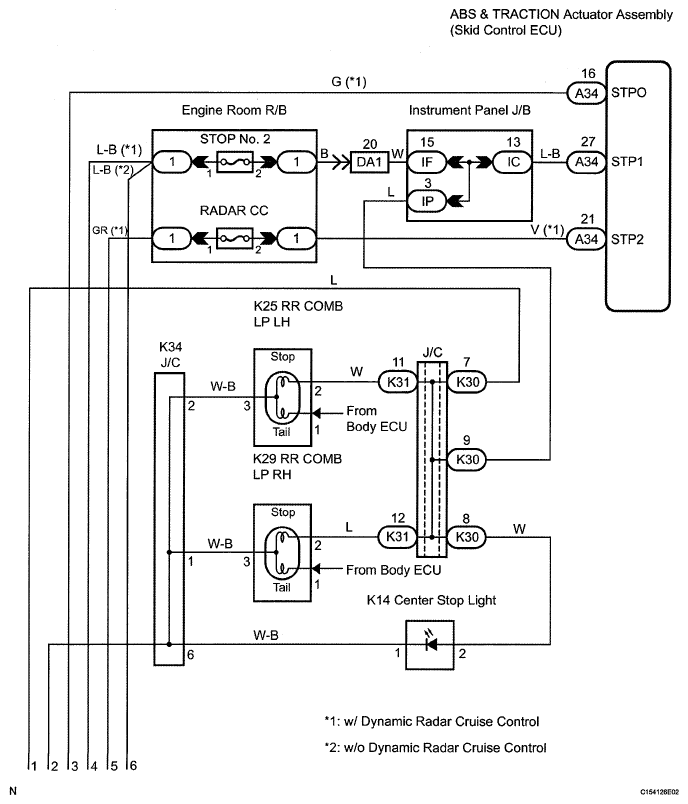

Fig 1: Stop Light Switch Circuit - Wiring Diagram (1 Of 2)
G05406730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Stop Light Switch Circuit - Wiring Diagram (2 Of 2)
G05406731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
