System Diagram

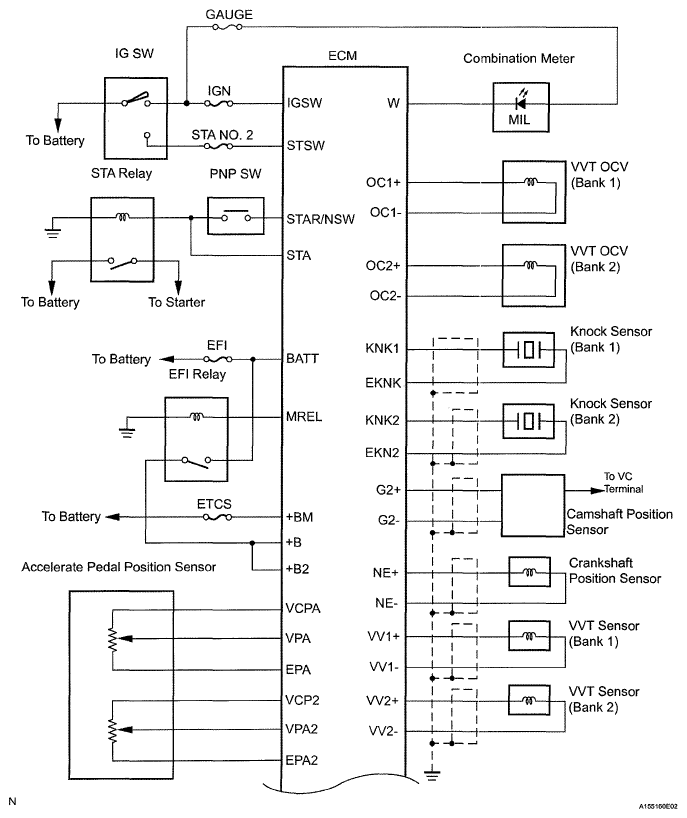

Fig 1: Identifying Engine Control System Diagram (1 Of 3)
G05553191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

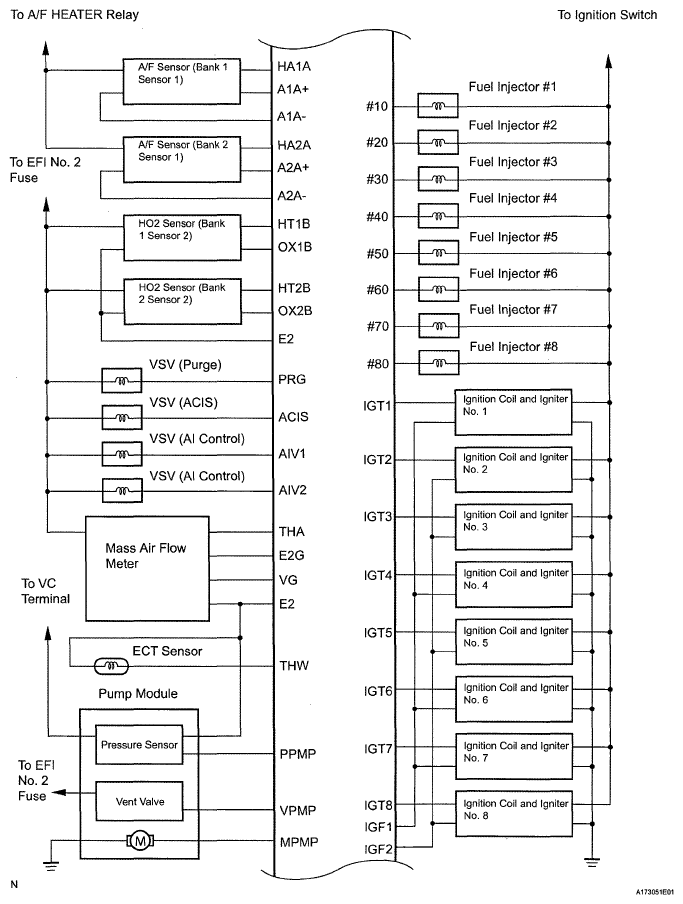

Fig 2: Identifying Engine Control System Diagram (2 Of 3)
G05553192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

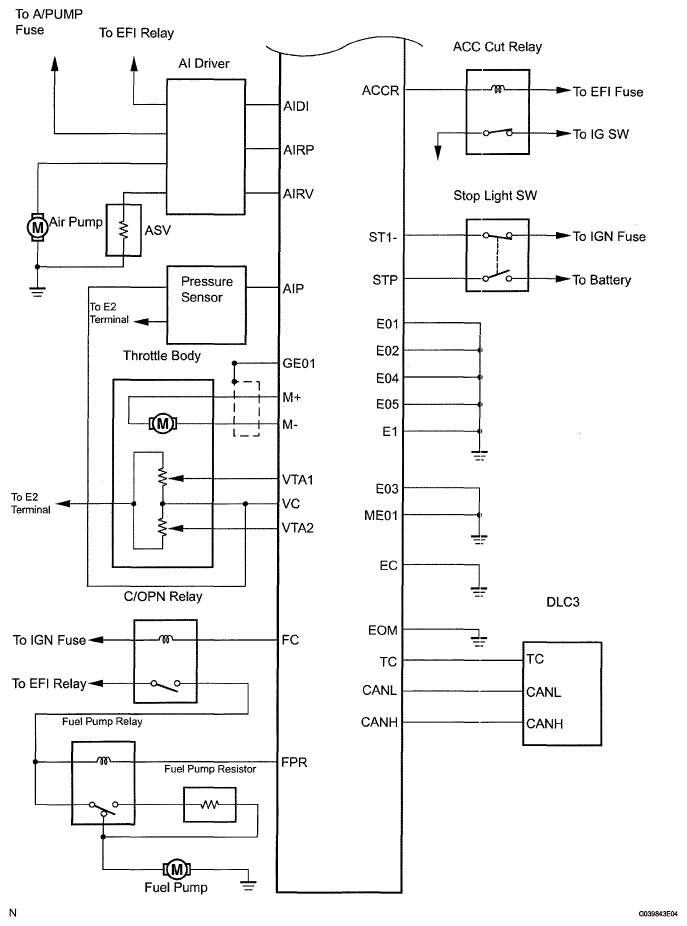

Fig 3: Identifying Engine Control System Diagram (3 Of 3)
G05553193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
