Key Switch Signal Inspection (Without Intelligent Key)

WARNING: This page is about a different car, the 2007 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUSE

    Check if the key switch and key lock solenoid 10A fuse [No. 14, located in the fuse block (J/B)] is blown.

    OK or NG

    OK >> GO TO 2.

    NG >> Be sure to repair the cause of malfunction before installing new fuse. Refer to " POWER SUPPLY ROUTING CIRCUIT  "  .

  2. CHECK BCM INPUT SIGNAL

    With CONSULT-II

    1. Select "BCM".
    2. With "DATA MONITOR" of "BUZZER", confirm "KEY ON SW" when the key is operated.

      "KEY ON SW"

      When key is inserted into ignition key cylinder: ON

      When key is removed from ignition key cylinder: OFF

      Fig 1: CONSULT-II Display - Data Monitor
      G04815541

      Without CONSULT-II

      Check voltage between BCM harness connector and ground.

      TERMINALS VOLTAGE REFERENCE

      Terminals Condition Voltage (Approx.)
      (+) (-)
      BCM connector Terminal
      M18 37 Ground Key is inserted Battery voltage
      Key is removed 0 V

    OK or NG

    OK >> Key switch signal is OK. Return to "SYMPTOM CHART ".

    NG >> GO TO 3.

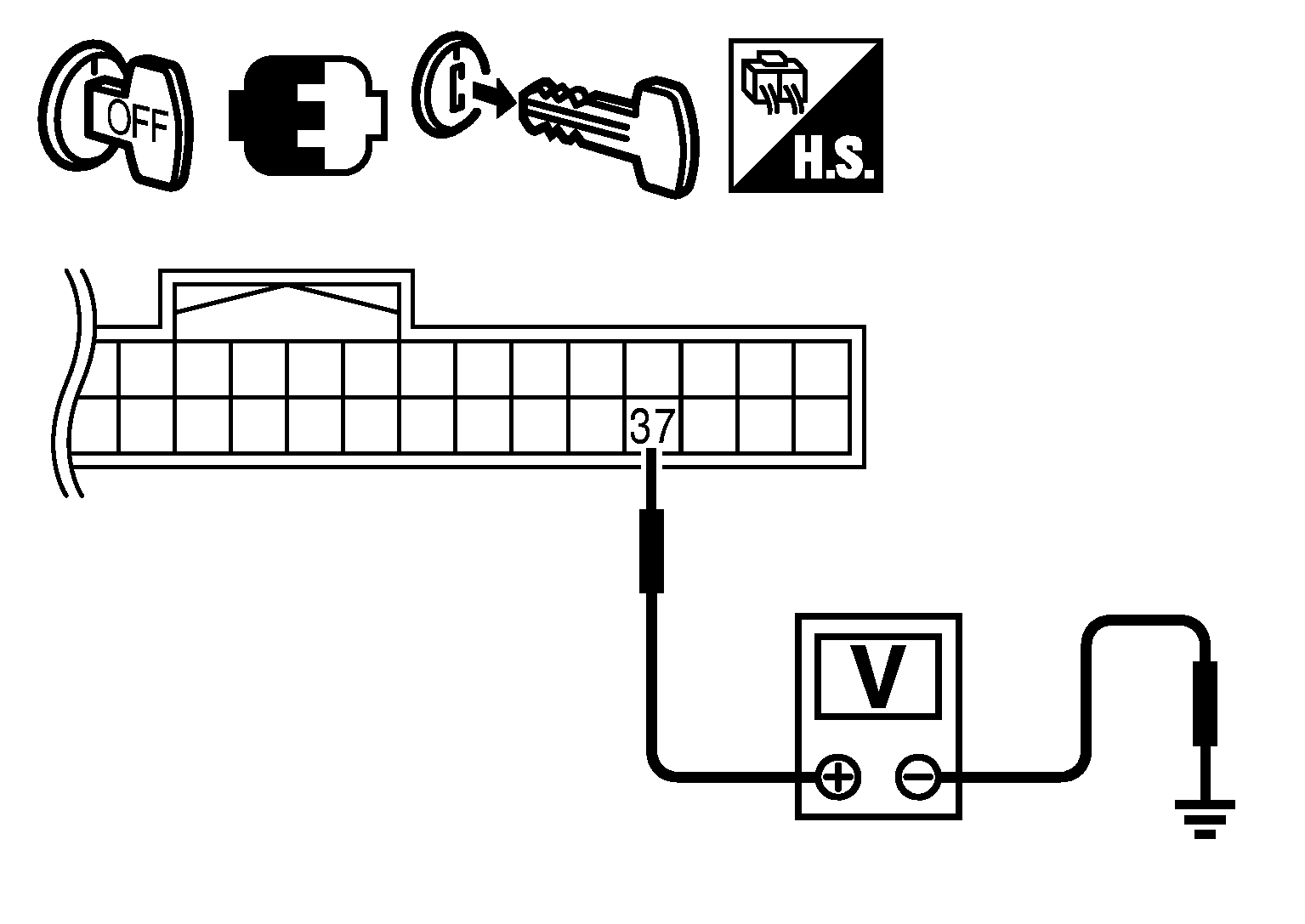

    Fig 2: Checking Voltage Between BCM Harness Connector And Ground
    G04815542
  3. CHECK KEY SWITCH
    1. Turn ignition switch OFF.
    2. Disconnect key switch and key lock solenoid connector.
    3. Check continuity between key switch and key lock solenoid terminals 1 and 2.
      TERMINALS CONTINUITY REFERENCE

      Terminals Condition Continuity
      1 2 When key is inserted into ignition key cylinder Yes
      When key is removed from ignition key cylinder No

    OK or NG

    OK >> GO TO 4.

    NG >> Replace key switch and key lock solenoid.

    Fig 3: Checking Continuity Between Key Switch And Key Lock Solenoid Terminals 1 And 2
    G04815543
  4. CHECK KEY SWITCH CIRCUIT
    1. Disconnect BCM connector.
    2. Check continuity between BCM harness connector (A) and key switch and key lock solenoid harness connector (B).
      TERMINALS CONTINUITY REFERENCE

      A B Continuity
      Connector Terminal Connector Terminal
      M18 37 M27 1 Yes
    3. Check continuity between BCM harness connector (A) and ground.
      TERMINALS CONTINUITY REFERENCE

      A Ground Continuity
      Connector Terminal
      M18 37 No
      Fig 4: Checking Continuity Between BCM Connector And Key Switch And Key Lock Solenoid Connector
      G04815544

    OK or NG

    OK >> GO TO 5.

    NG >> Repair harness or connector.

  5. CHECK KEY SWITCH POWER SUPPLY CIRCUIT

    Check voltage between key switch and key lock solenoid harness connector and ground.

    TERMINALS VOLTAGE REFERENCE

    Terminals Voltage (Approx.)
    (+) (-)
    Key switch and key lock solenoid connector Terminal
    M27 2 Ground Battery voltage

    OK or NG

    OK >> Replace BCM. Refer to " REMOVAL AND INSTALLATION OF BCM  "  .

    NG >> Repair harness or connector.

    Fig 5: Checking Voltage Between Key Switch And Key Lock Solenoid Connector And Ground
    G04815545
