Door Switch Check (Hatchback)

WARNING: This page is about a different car, the 2007 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR SWITCHES INPUT SIGNAL

With CONSULT-II

Check door switches ("DOOR SW-DR""DOOR SW-AS""DOOR SW-RL""DOOR SW-RR""BACK DOOR SW") in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

When doors are open:
DOOR SW-DR: ON

DOOR SW-AS: ON

DOOR SW-RL: ON

DOOR SW-RR: ON

BACK DOOR SW: ON
When doors are closed:
DOOR SW-DR: OFF

DOOR SW-AS: OFF

DOOR SW-RL: OFF

DOOR SW-RR: OFF

BACK DOOR SW: OFF

Fig 1: DATA MONITOR Mode In CONSULT-II Screen

Without CONSULT-II

Check voltage between BCM connector M18 or M19 terminals 12, 13, 43, 47, 48 and ground.

CONNECTOR TERMINAL VOLTAGE SPECIFICATIONS

Connector	Item	Terminals		Condition	Voltage (V) (Approx.)
Connector	Item	( +)	( -)	Condition	Voltage (V) (Approx.)
M18	Front door switch RH	12	Ground	Open ↓ Closed	0 ↓ Battery voltage
M18	Rear door switch RH	13
M19	Back door switch	43
	Front door switch LH	47
	Rear door switch LH	48

Fig 2: Checking Voltage Between BCM Connector M18 Or M19 Terminals 12, 13, 43, 47, 48 And Ground

OK or NG

OK >> Door switch circuit is OK.

NG >> GO TO 2.

CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM.
3. Check continuity between door switch connector (B) B8 (front LH), B108 (front RH) terminal 2 or (C) B6 (rear LH), B116 (rear RH) terminal 1 or back door lock assembly connector (D) D405 terminal 3 and BCM connectors (A) M18, M19 terminals 12, 13, 43, 47 and 48.
  1 - 13: Continuity should exist.

  1 - 48: Continuity should exist.

  2 - 12: Continuity should exist.

  2 - 47: Continuity should exist.

  3 - 43: Continuity should exist.

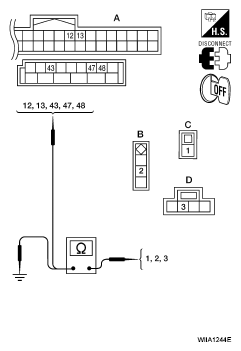

4. Check continuity between door switch connector (B) B8 (front LH), B108 (front RH) terminal 2 or (C) B6 (rear LH), B116 (rear RH) terminal 1 or back door lock assembly connector (D) D405 terminal 3 and ground.
  1 - Ground: Continuity should not exist.

  2 - Ground: Continuity should not exist.

  3 - Ground: Continuity should not exist.
OK or NG

OK >> GO TO 3.

NG >> Repair or replace harness.

Fig 3: Checking Door Switch Circuit
CHECK DOOR SWITCHES
FRONT AND REAR DOORS

Check continuity between front door switch terminal 2 or rear door switch terminal 1 and exposed metal of switch while pressing and releasing switch.

Door switch is released: Continuity should exist.

Door switch is pushed: Continuity should not exist.

Fig 4: Checking Continuity Between Front Door Switch Terminal 2 Or Rear Door Switch Terminal 1

BACK DOOR

Check continuity between back door lock assembly connector (back door switch) terminals 3 and 4 while pressing (closing back door) and releasing (opening back door) switch.

When back door is open: Continuity should exist.

When back door is closed: Continuity should not exist.

OK or NG

OK >> (Front and rear doors) Switch circuit is OK.

OK >> (Back door) GO TO 4.

NG >> Replace door switch.

Fig 5: Checking Continuity Between Back Door Lock Assembly Connector (Back Door Switch) Terminals 3 And 4
CHECK BACK DOOR SWITCH GROUND
Check continuity between back door lock assembly connector D405 terminal 4 and ground.

4 - Ground: Continuity should exist.

OK or NG

OK >> Back door switch circuit is OK.

NG >> Repair or replace harness.

Fig 6: Checking Back Door Switch Ground
