DTC P0617 Starter Relay Circuit High: Wiring Diagram

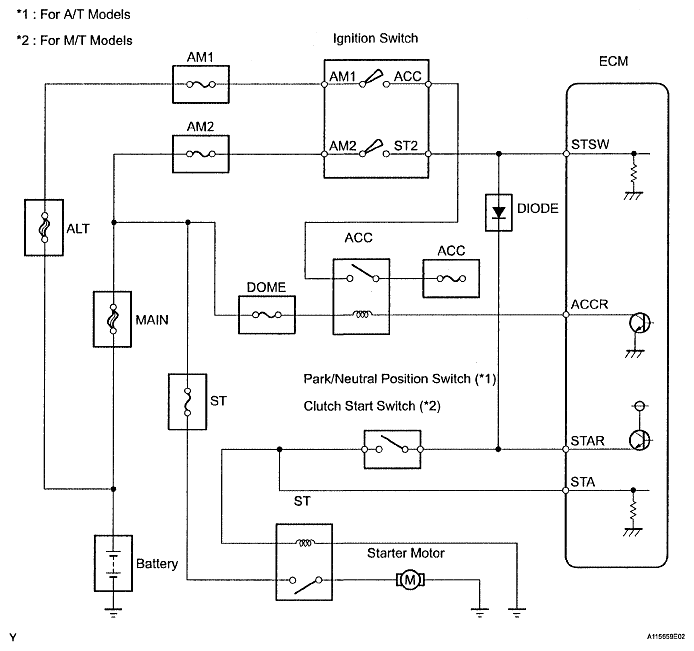

Fig 1: Identifying Starter Relay Circuit High Wiring Diagram

G04828202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
