Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

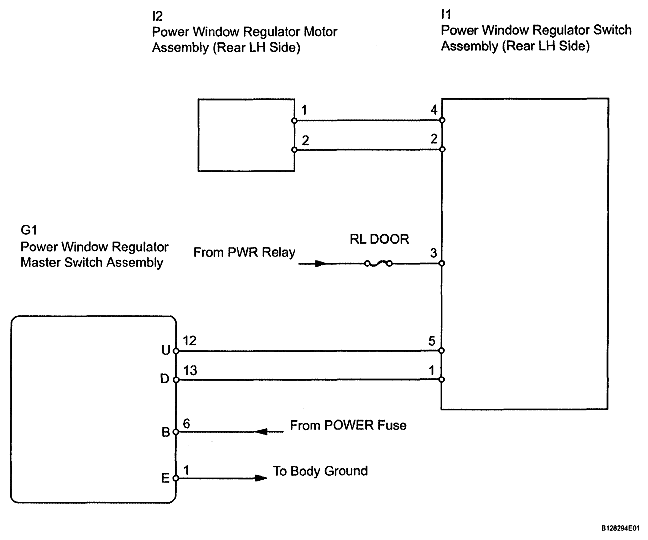

Fig 1: Rear Power Window Switch LH - Wiring Diagram

G04833773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
