Inspection Procedure

  1. CHECK CRANKING
    1. Check the cranking of the engine.

      Result

      CRANKING

      Test Result Proceed to
      Cranking possible and holding control operates A
      Does not crank B
      Cranking possible but holding control does not operate C

    B: Go to step 2

    C:  Go to step  11

    A: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

  2. READ VALUE OF INTELLIGENT TESTER OR TECHSTREAM (STARTER SIGNAL)
    1. Connect the intelligent tester or Techstream to the DLC3.
    2. Turn the ignition switch ON.
    3. Turn the tester ON.
    4. Enter the following menus:
      1. Intelligent tester - Select: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / STARTER SIG.
      2. Techstream - Select: Powertrain / Engine and ECT / Data List / Starter Signal.
    5. Read values.
    6. Check the result when the ignition switch is turned ON and when the engine is started.

      Standard

      IGNITION SWITCH POSITION CHART

      Ignition Switch Position Display (STARTER SIGNAL)
      ON OFF
      START ON

    NG:  Go to step  7

    OK: Go to next step

  3. INSPECT STARTER RELAY (ST)
    1. Remove the starter relay (ST) from the engine room relay block (see ON-VEHICLE INSPECTION ).
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STARTER RELAY (ST)

      Tester Connection Condition Specified Condition
      3 - 5 When no battery voltage applied to terminals 1 and 2 10 kΩ or higher
      3 - 5 When battery voltage applied to terminals 1 and 2 Below 1 Ω
      Fig 1: Inspecting Starter Relay
      G04942976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE STARTER RELAY (ST)  (See ON-VEHICLE INSPECTION )

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (ST RELAY - PNP SWITCH)
    1. Remove the starter relay (ST) from the engine room relay block (see ON-VEHICLE INSPECTION ).
    2. Disconnect the D35 PNP switch.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      ST RELAY - PNP SWITCH

      Tester Connection Condition Specified Condition
      ST relay (1) - D35-5 Always Below 1 Ω
      ST relay (1) or D35-5 - Body ground Always 10 kΩ or higher

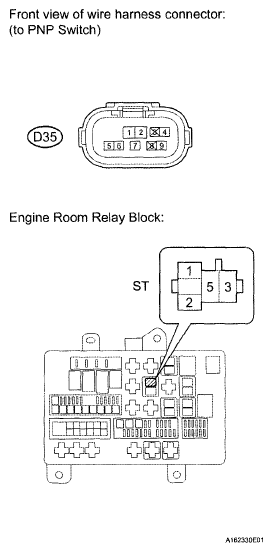

      Fig 2: Identifying D35 PNP Switch Connector Terminal
      G05149979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK STARTER RELAY (POWER SOURCE)
    1. Remove the ST relay from the engine room relay block (see ON-VEHICLE INSPECTION ).
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      STARTER RELAY (POWER SOURCE)

      Tester Connection Condition Specified Condition
      ST relay (2) - ST relay (5) Always 11 to 14 V
      Fig 3: Identifying Starter Relay
      G05149980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER RELAY (ST) BATTERY, BODY GROUND)

    OK: Go to next step

  6. INSPECT STARTER
    1. Inspect the starter (see INSPECTION ).

    NG: REPAIR OR REPLACE STARTER  (See REMOVAL )

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (STARTER - STARTER RELAY (ST), BATTERY)

  7. CHECK IGNITION SWITCH (POWER SOURCE)
    1. Disconnect the J9 ignition switch connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      IGNITION SWITCH (POWER SOURCE)

      Tester Connection Condition Specified Condition
      J9-5 (AM2) - Body ground Always 11 to 14 V
      Fig 4: Identifying J9 Ignition Switch Connector Terminals
      G05149527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH - BATTERY POSITIVE TERMINAL)

    OK: Go to next step

  8. INSPECT IGNITION SWITCH
    1. Inspect the ignition switch (see INSPECTION ).

    NG: REPLACE IGNITION SWITCH  (See REMOVAL )

    OK: Go to next step

  9. INSPECT PARK / NEUTRAL POSITION SWITCH (POWER SOURCE)
    1. Disconnect the D35 PNP switch connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      PARK / NEUTRAL POSITION SWITCH (POWER SOURCE)

      Tester Connection Condition Specified Condition
      D35-4 - Body ground While cranking the engine 11 to 14 V
      Fig 5: Identifying D35 PNP Switch Connector Terminal
      G05149528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (PNP SWITCH - IGNITION SWITCH)

    OK: Go to next step

  10. INSPECT PARK / NEUTRAL POSITION SWITCH
    1. Disconnect the D35 PNP switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      PARK / NEUTRAL POSITION SWITCH

      Tester Connection Switch Condition Specified Condition
      4 (B) - 5 (L) Shift lever position P Below 1 Ω
      Shift lever position N Below 1 Ω

      Result

      RESULT REFERENCE

      Result Proceed to
      OK A
      NG (for 2WD) B
      NG(for4WD) C
      Fig 6: Identifying D35 PNP Switch Connector Terminal
      G05149857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: REPLACE PARK / NEUTRAL POSITION SWITCH ASSEMBLY  (See DATA LIST / ACTIVE TEST )

    C: REPLACE PARK / NEUTRAL POSITION SWITCH ASSEMBLY  (See DATA LIST / ACTIVE TEST )

    A: REPAIR OR REPLACE HARNESS OR CONNECTOR (PNP SWITCH - ECM)

  11. CHECK HARNESS AND CONNECTOR (IGNITION SWITCH - ECM)
    1. Disconnect the J9 ignition switch connector.
    2. Disconnect the A24 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      IGNITION SWITCH - ECM

      Tester Connection Condition Specified Condition
      J9-7 (ST2) - A24-14 (STSW) Always Below 1 Ω
      J9-7 (ST2) or A24-14 (STSW) - Body ground Always 10 kΩ or higher
      Fig 7: Identifying J9 Ignition Switch Connector Terminal And A24 ECM Connector Terminal
      G05149984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  12. CHECK HARNESS AND CONNECTOR (PNP SWITCH - ECM)
    1. Disconnect the D35 PNP switch connector.
    2. Disconnect the D74 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      PNP SWITCH - ECM

      Tester Connection Condition Specified Condition
      D35-4 - D74-16 (STAR) Always Below 1 Ω
      D35-4 or D74-16 (STAR) - Body ground Always 10 kΩ or higher
      Fig 8: Identifying D74 ECM Connector Terminal And D35 PNP Switch Connector Terminal
      G05149985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE ECM  (see REMOVAL  )
