Camshaft Timing Oil Control Valve Assembly: Components

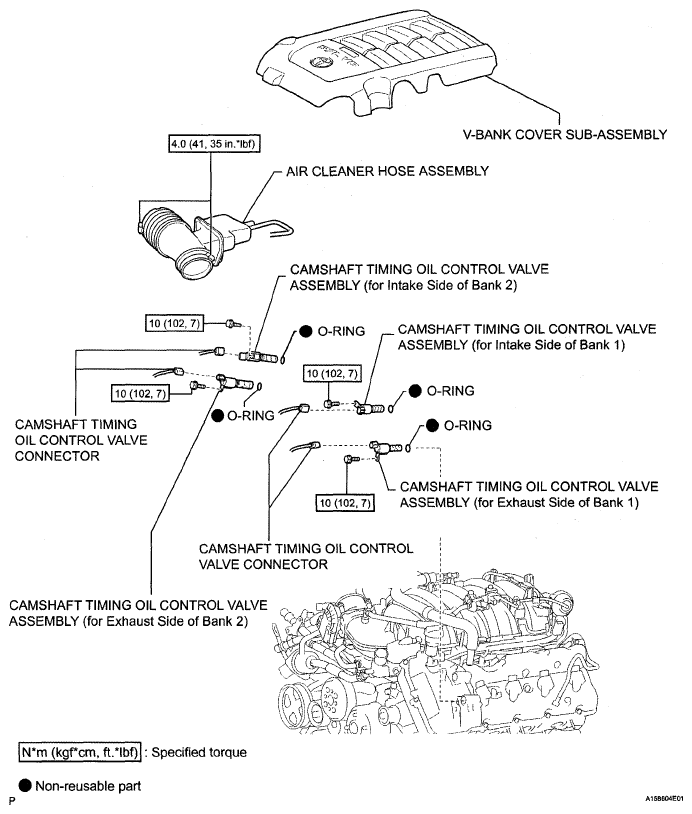

Fig 1: Camshaft Timing Oil Control Valve Replacement Components With Torque Specifications

G05149994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
