VC Output Circuit: Wiring Diagram

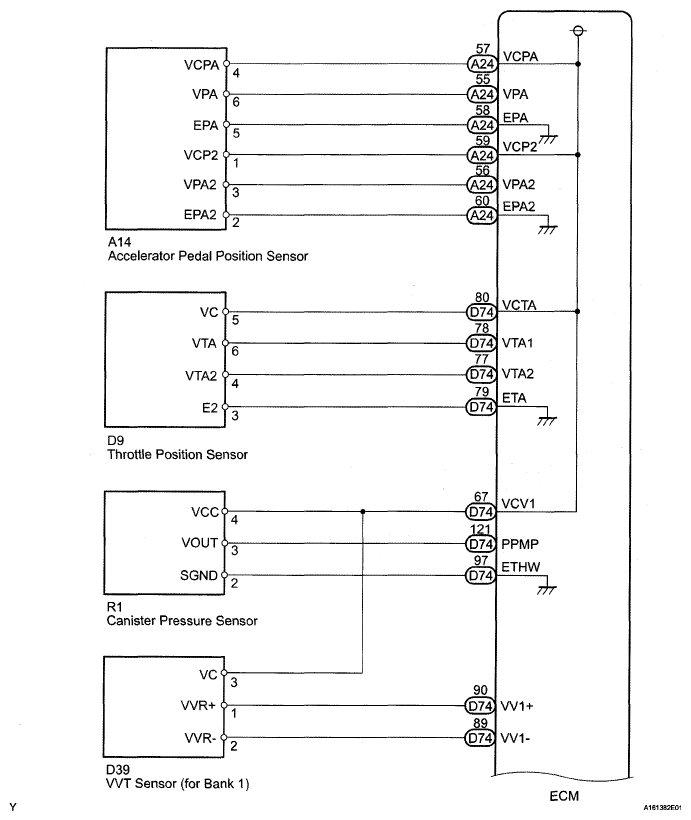

Fig 1: VC Output - Wiring Diagram (1 Of 2)
G05149519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

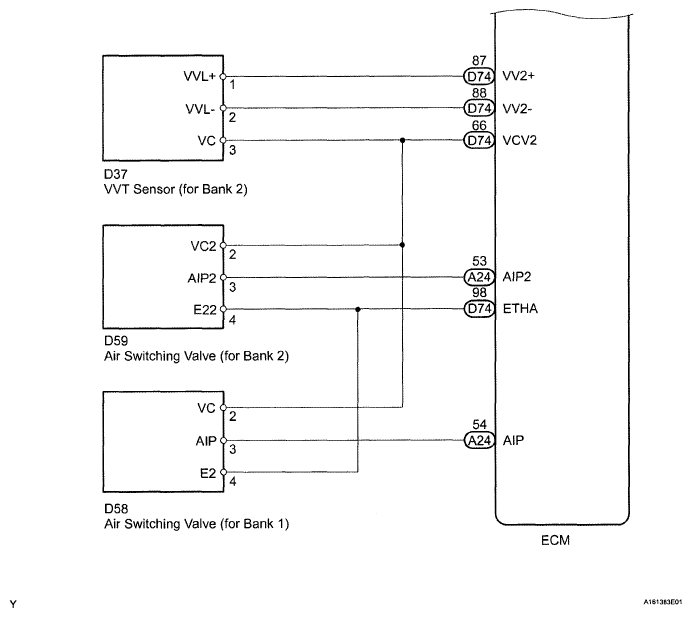

Fig 2: VC Output - Wiring Diagram (2 Of 2)
G05149520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
