Front Passenger Side Power Window Does Not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

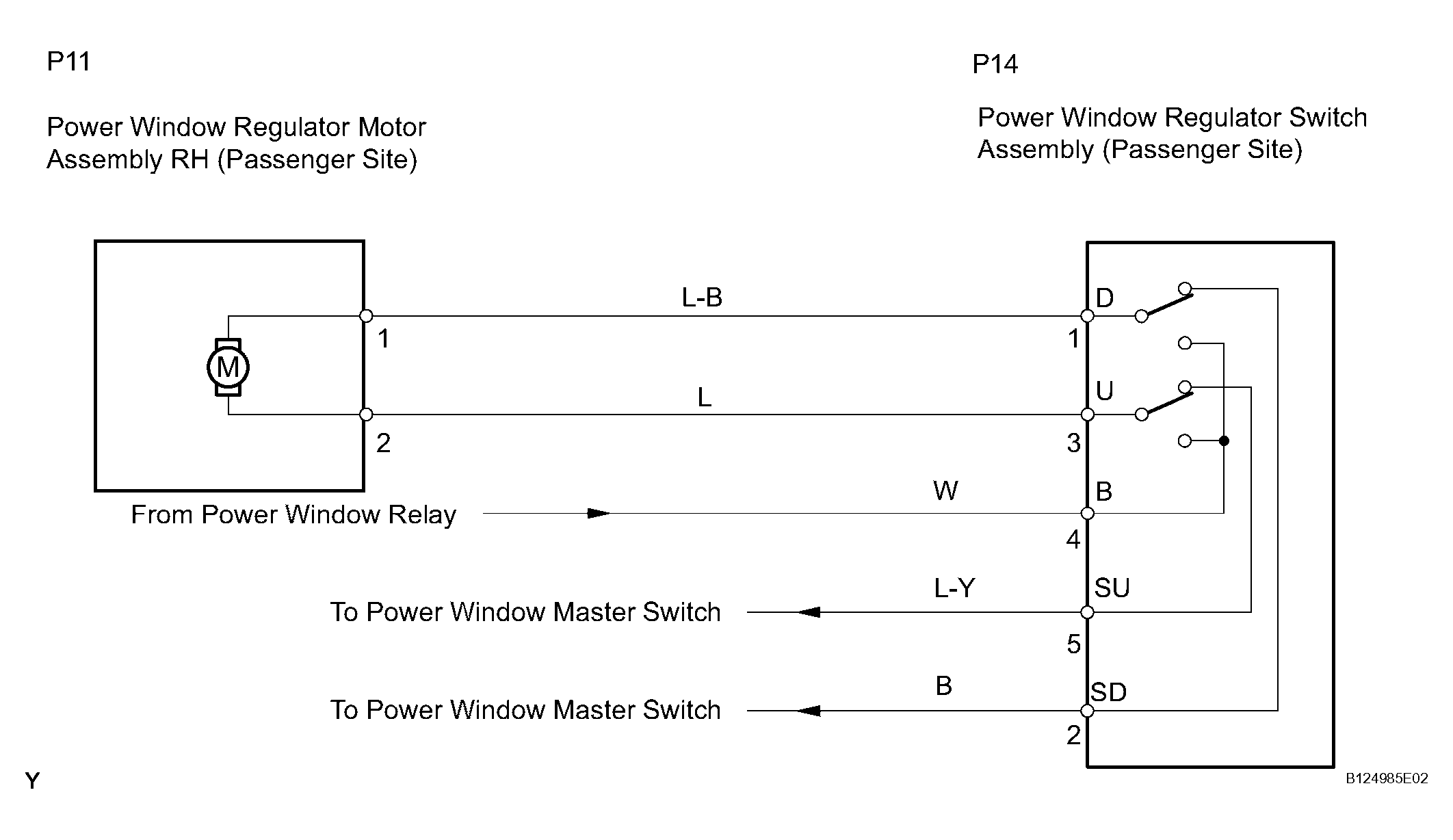

Fig 1: Power Window Does Not Operate With Front Passenger Side Power Window Switch - Wiring Diagram
G04412847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
