System Diagram

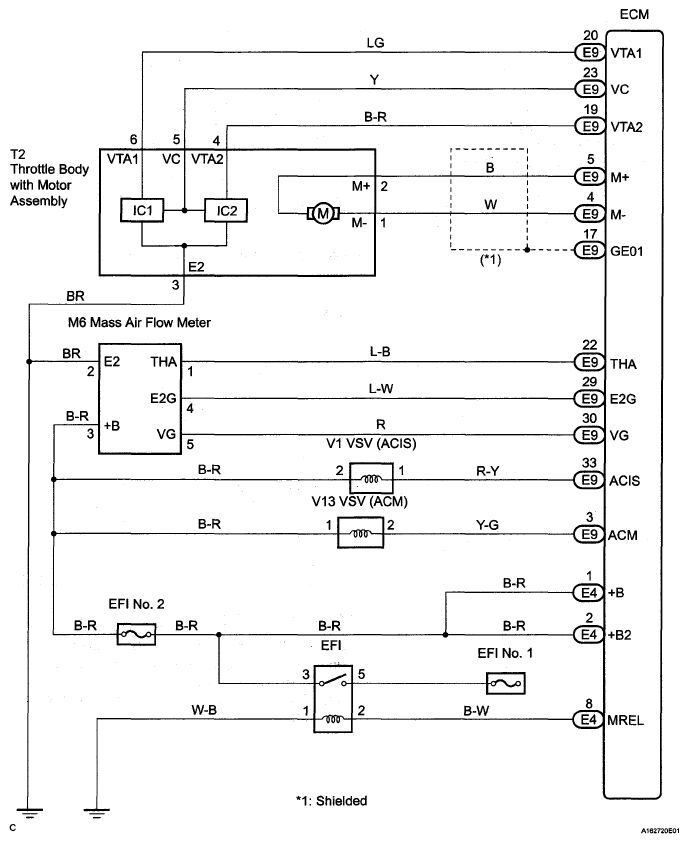

Fig 1: Intake System Diagram
G05139918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
