Cruise Control Switch Circuit: Wiring Diagram

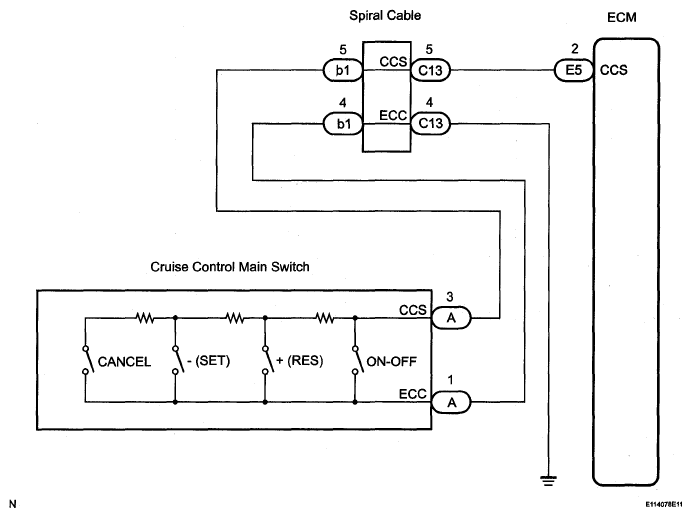

Fig 1: Cruise Control Switch Wiring Diagram

G05140607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
