Back Door Power Window Motor Circuit: Wiring Diagram

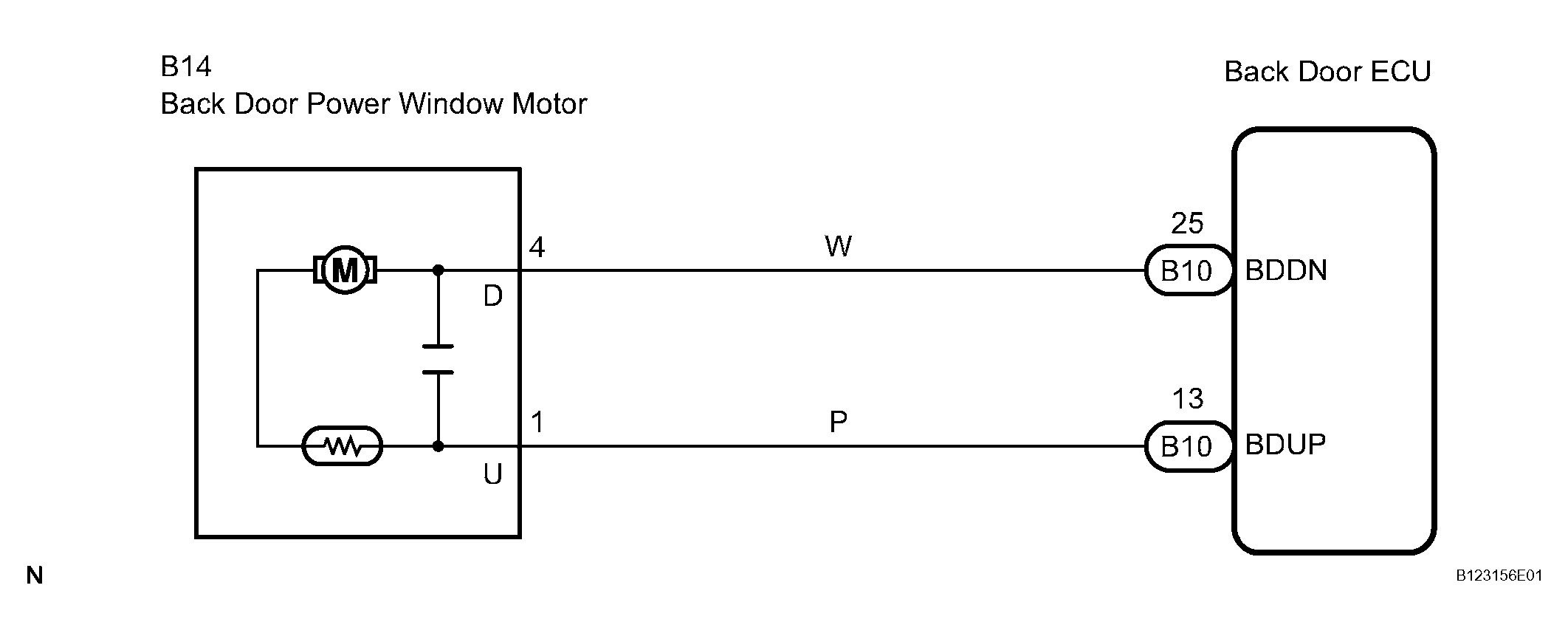

Fig 1: Back Door Power Window Motor - Wiring Diagram

G04511033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
