System Diagram: Wiring Diagram

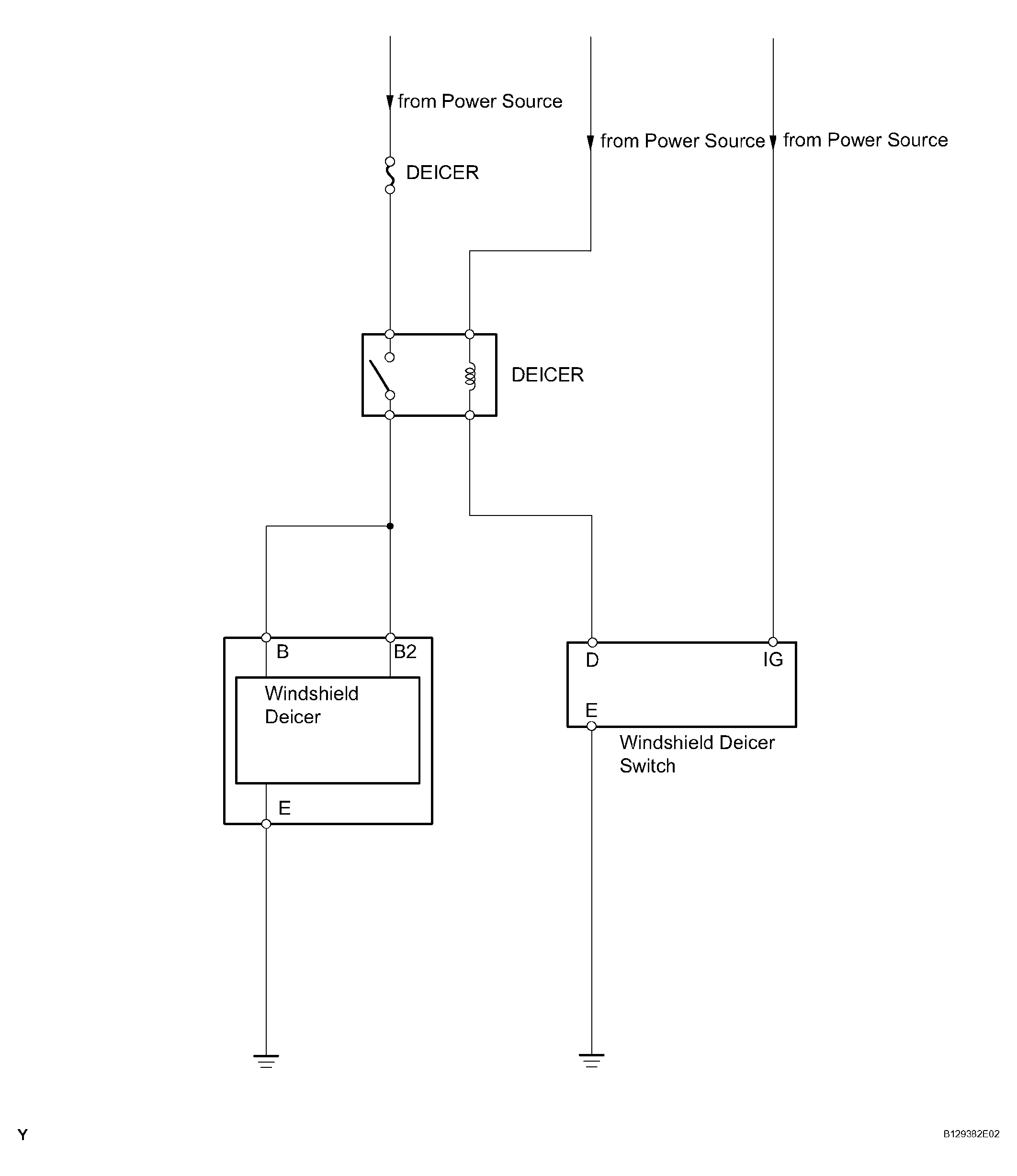

Fig 1: Windshield Deicer System Diagram

G04491460

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
