DTC U0073/49 Control Module Communication Bus Off; DTC U0105/41 Lost Communication with Fuel Injector Control Module; DTC U0121/42 Lost Communication with Anti-Lock Brake System (ABS) Control Module: Wiring Diagram

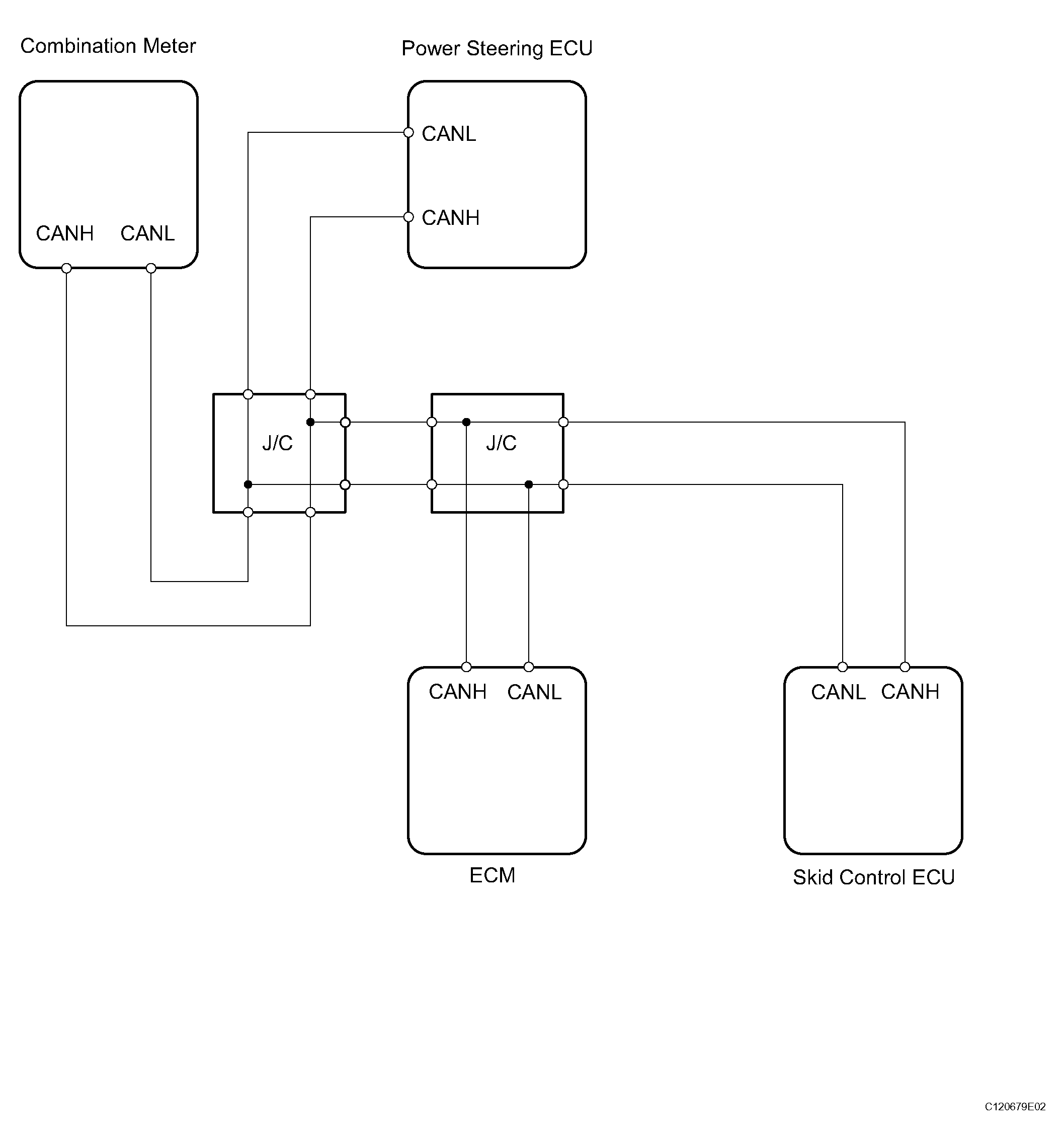

Fig 1: Control Module Communication - Wiring Diagram
G04489751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
