How To Determine Bolt Strength

Bolt Type

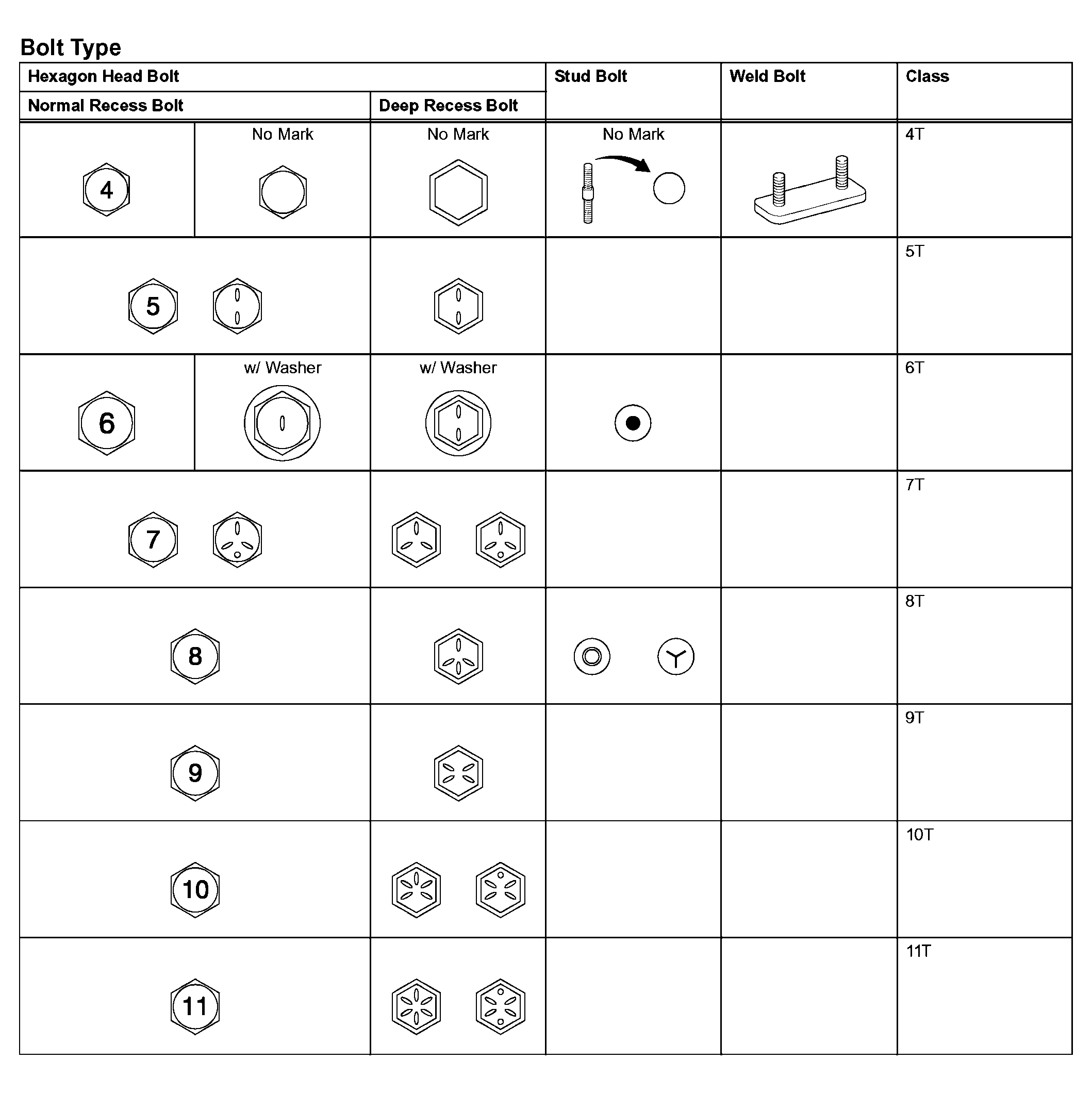

Fig 1: Identifying Bolt Type & Specification

G04483714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
