Section 12 (Intake (2GR-FE))
>>
Intake System
>>
Wiring Diagram
Intake System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

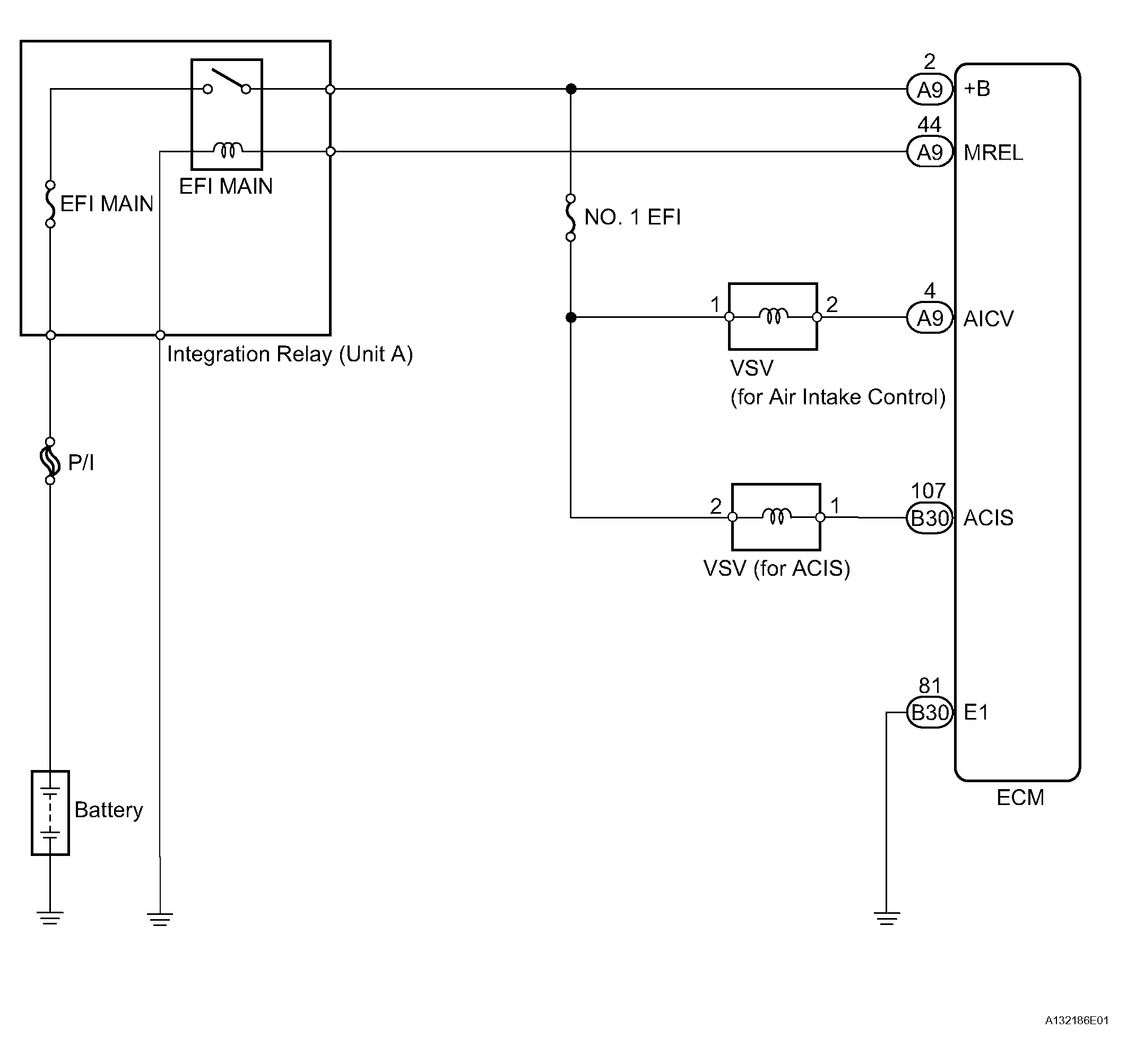

Fig 1: Intake System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
