System Diagram

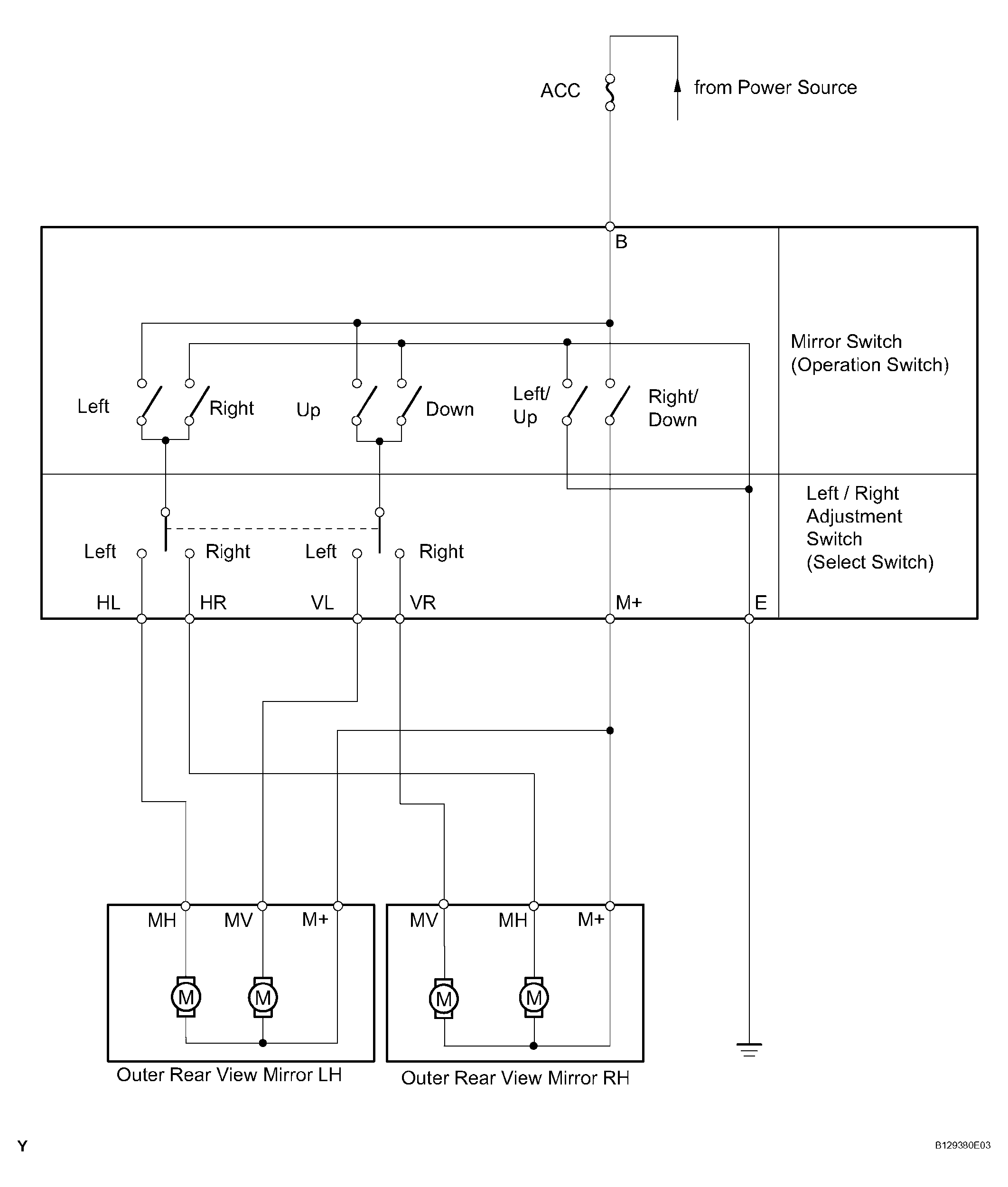

Fig 1: Power Mirror Control System Diagram

G04491489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
