Blower Unit: Disassembly

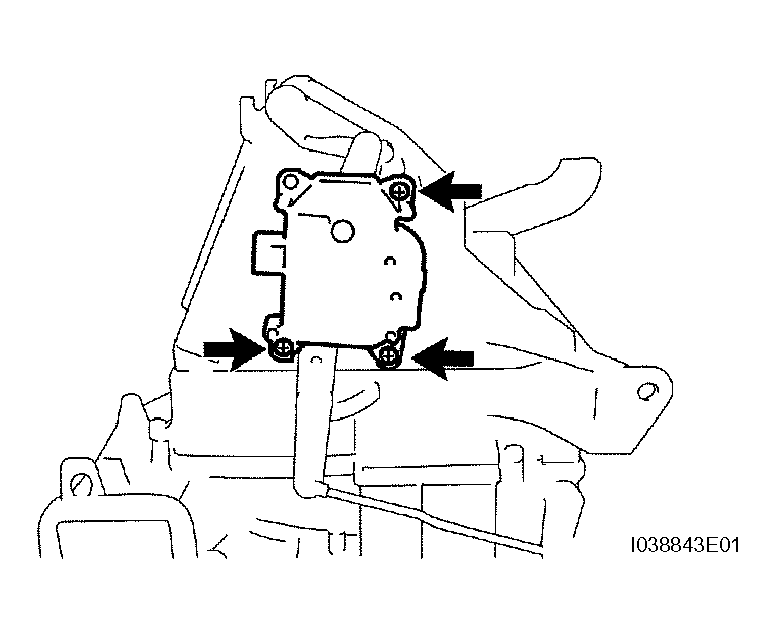

  1. REMOVE AIR INLET SERVO MOTOR
    1. Remove the 3 screws and air inlet servo motor.
      Fig 1: Removing Air Inlet Servo Motor
      G04475191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

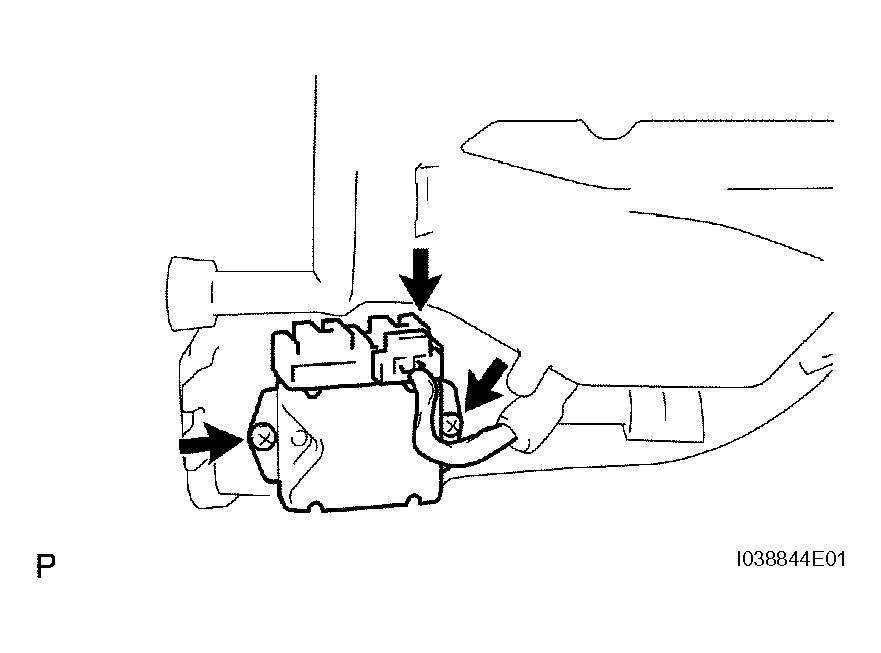

  2. REMOVE BLOWER MOTOR CONTROL
    1. Disconnect the connector.
    2. Remove the 2 screws and blower motor control.
      Fig 2: Removing Blower Motor Control
      G04475192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 COOLER WIRING HARNESS SUBASSEMBLY

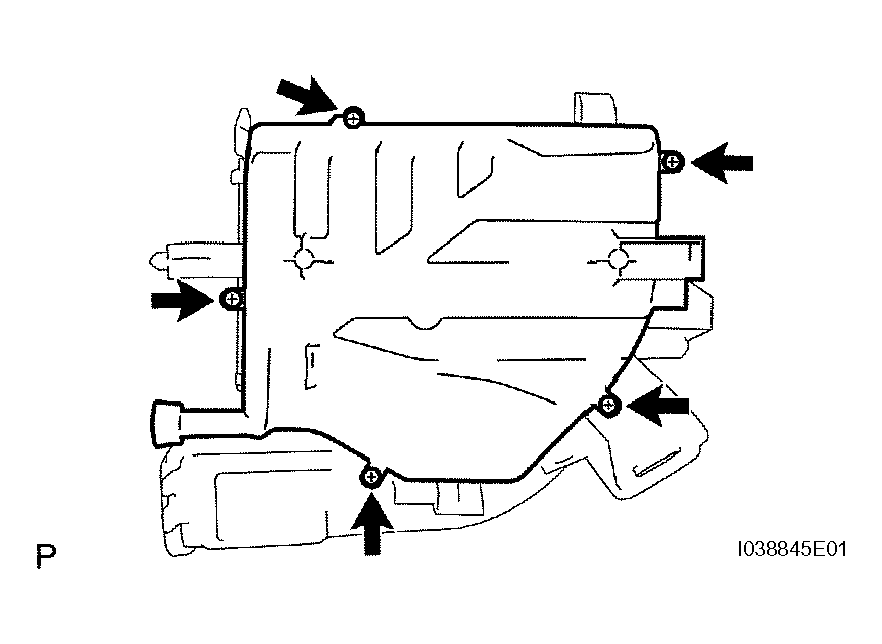

    1. Remove the 5 screws and blower motor cover.
      Fig 3: Removing Blower Motor Cover
      G04475193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

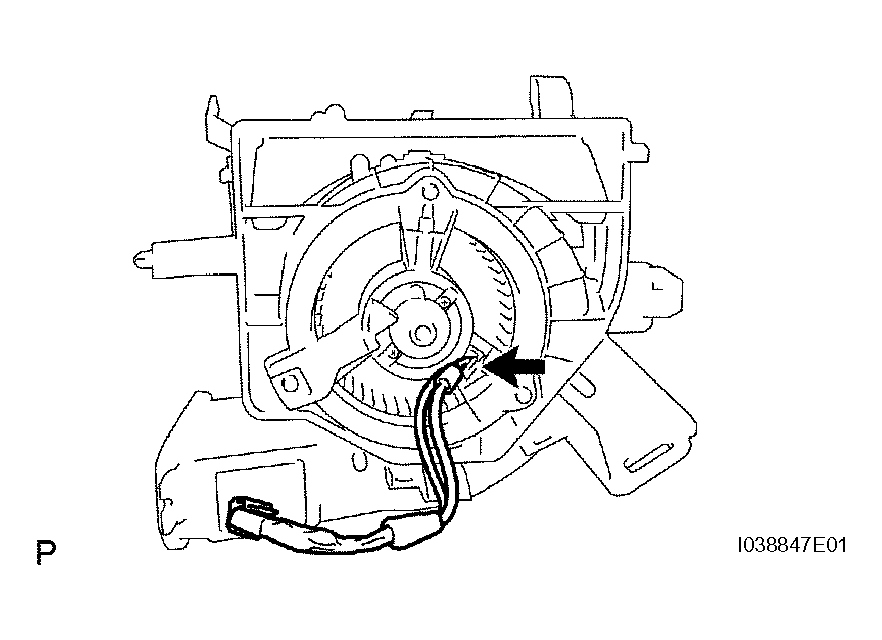

    2. Remove the No. 2 cooler wiring harness from the blower with fan motor.
      Fig 4: Removing No 2 Cooler Wiring Harness From Blower
      G04475194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

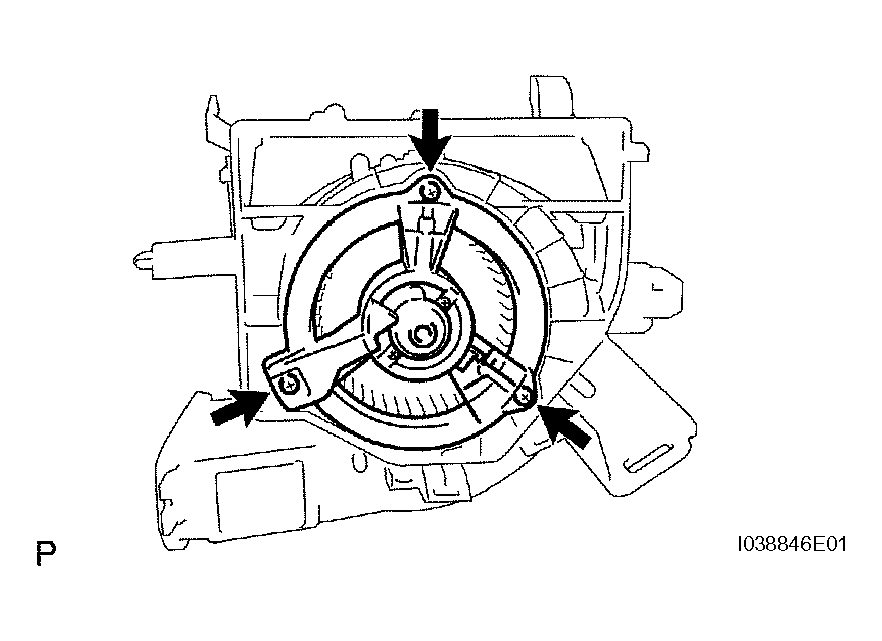

  4. REMOVE BLOWER WITH FAN MOTOR SUBASSEMBLY
    1. Remove the 3 screws and blower with fan motor.
      Fig 5: Removing Blower With Fan Motor
      G04475195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

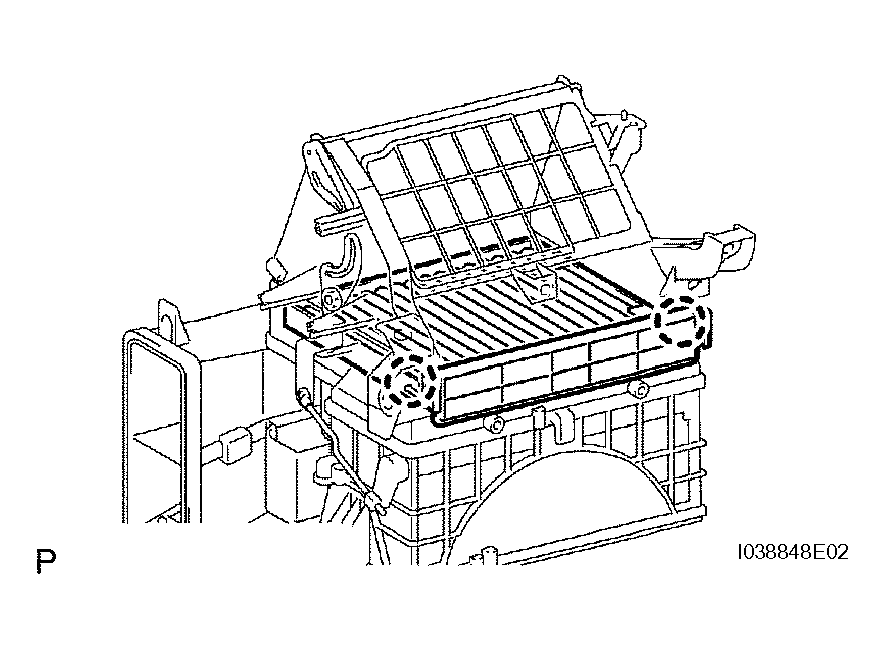

  5. REMOVE CLEAN AIR FILTER
    1. Detach the 2 claws and then remove the air filter cover plate with the clean air filter.
    2. Remove the clean air filter from the air filter cover plate.
      Fig 6: Removing Clean Air Filter
      G04475196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
