DTC Check / Clear

  1. CHECK DTC
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Turn the power switch ON (IG) and turn the intelligent tester ON.
    3. Read the DTC by following the prompts on the tester screen.

      HINT:

      Refer to the intelligent tester operator's manual for further details.

  2. CLEAR DTC
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Turn the power switch ON (IG) and turn the intelligent tester ON.
    3. Clear the DTC by following the prompts on the tester screen.

      HINT:

      Refer to the intelligent tester operator's manual for further details.

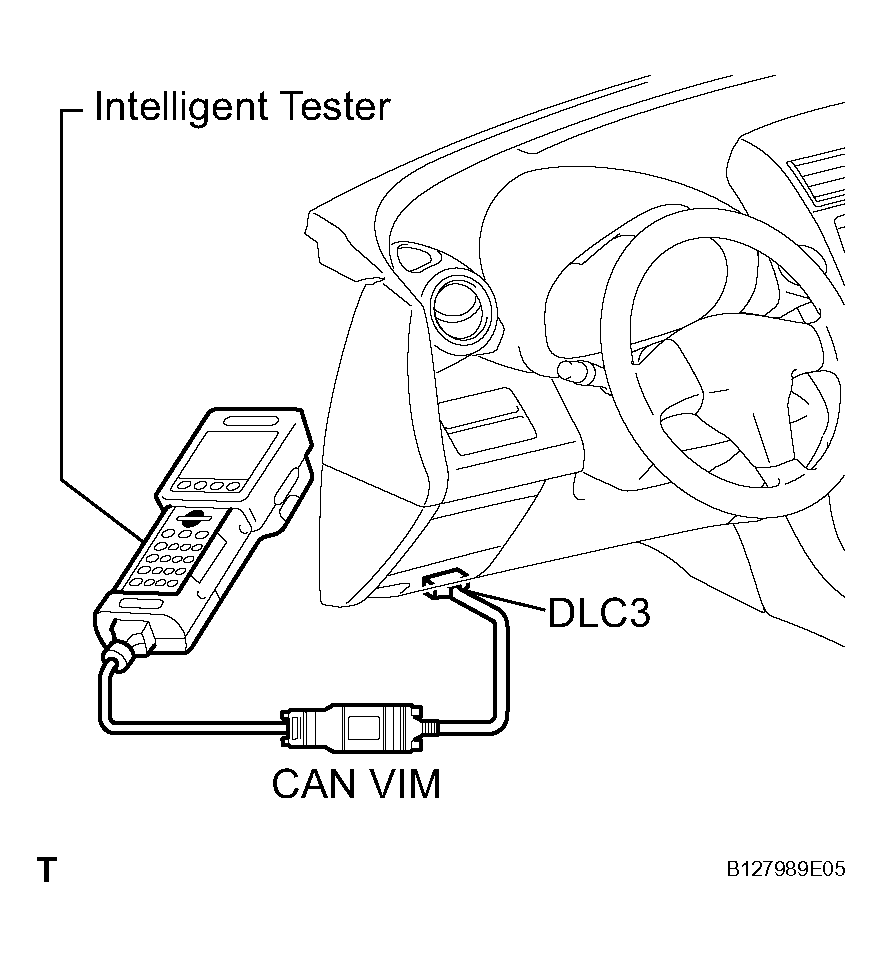

      Fig 1: Connecting Intelligent Tester To DLC3
      G04475012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
