DTC C1377/43 Capacitor Malfunction: Wiring Diagram

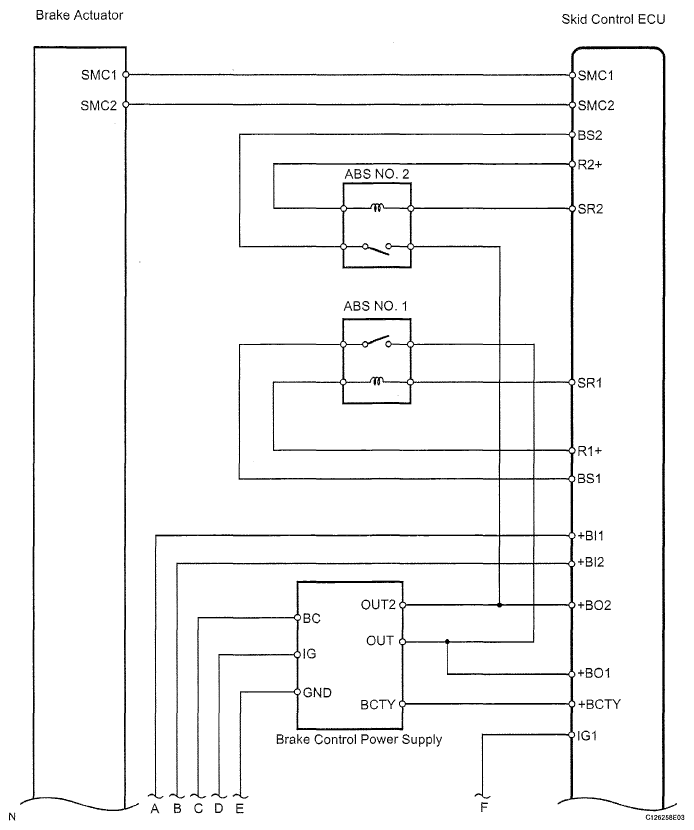

Fig 1: Brake Control Power Supply - Wiring Diagram (1 Of 3)
G05189276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

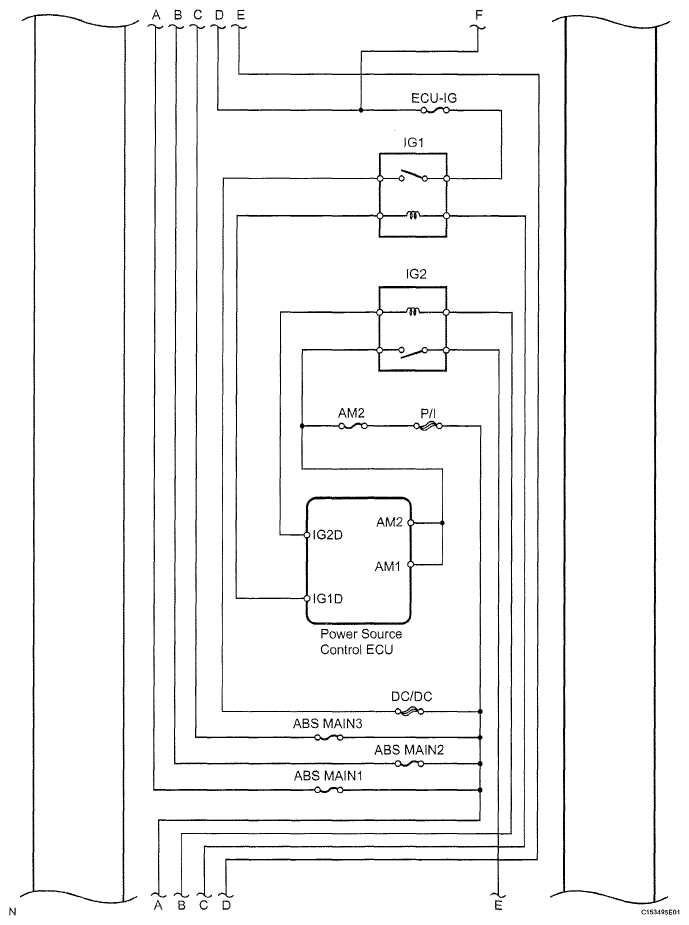

Fig 2: Brake Control Power Supply - Wiring Diagram (2 Of 3)
G05189249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

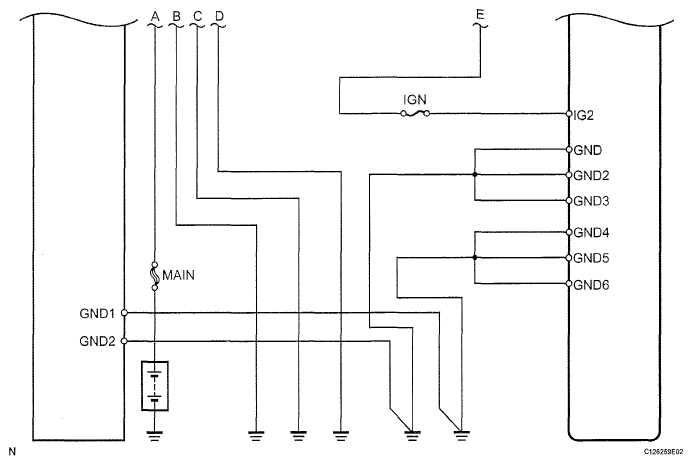

Fig 3: Brake Control Power Supply - Wiring Diagram (3 Of 3)
G05189278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
