DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

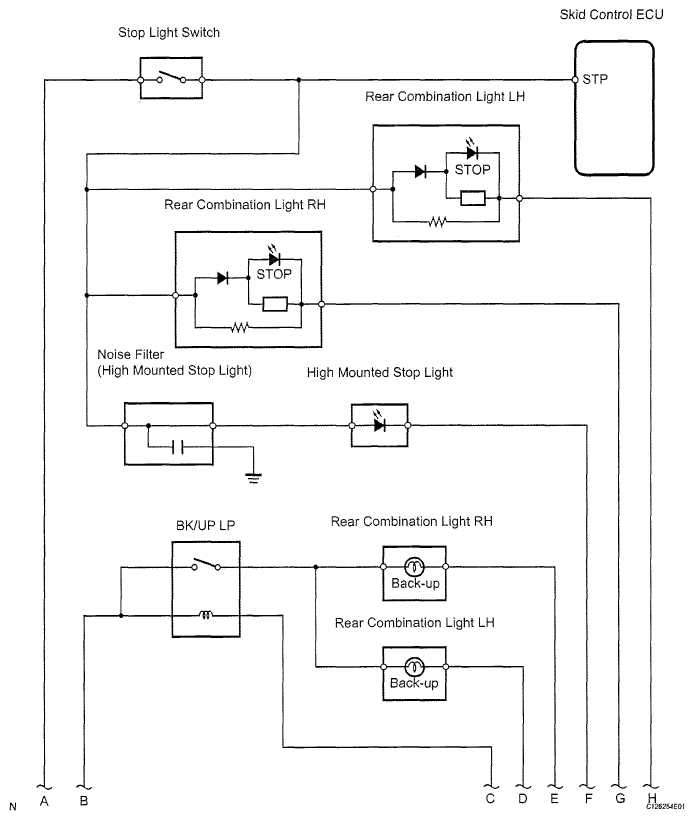

Fig 1: Stop Light Switch Wiring Diagram (1 Of 2)
G05189261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

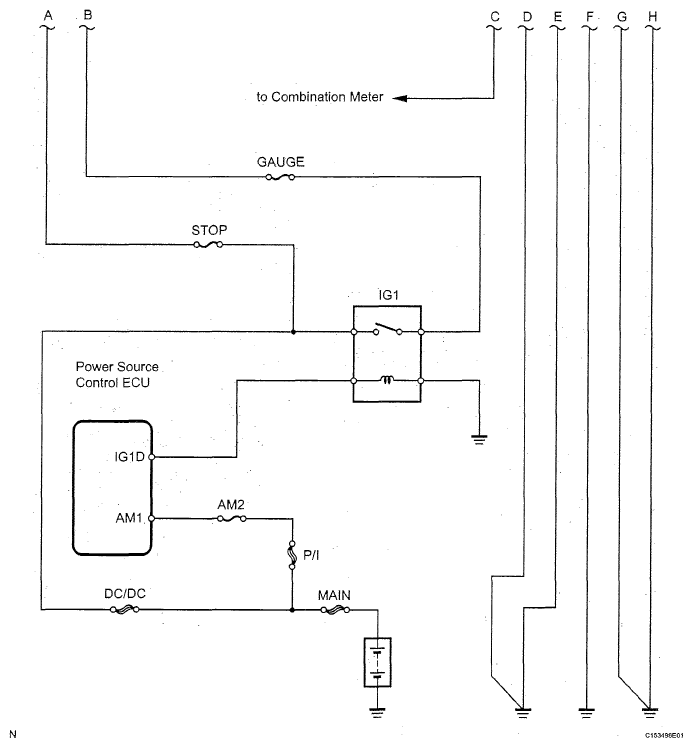

Fig 2: Stop Light Switch Wiring Diagram (2 Of 2)
G05189262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
