DTC C1231/31 Steering Angle Sensor Circuit Malfunction: Wiring Diagram

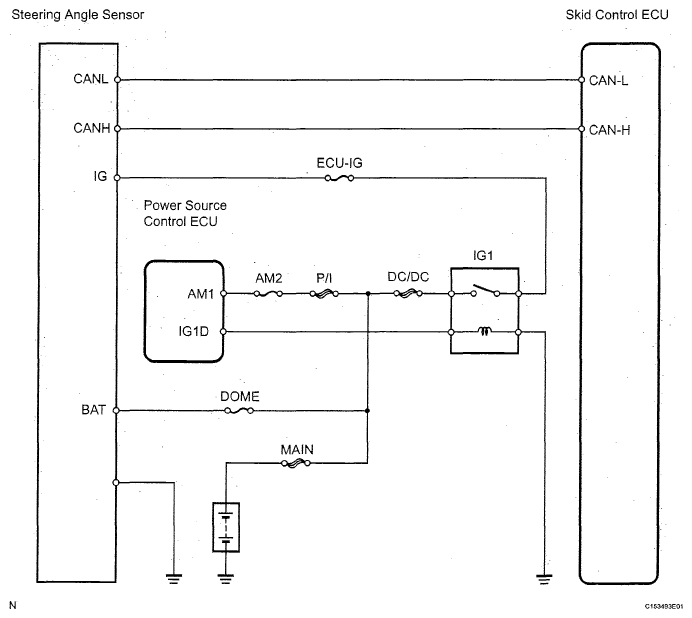

Fig 1: Steering Angle Sensor Wiring Diagram

G05189242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
