Input Shaft: Components

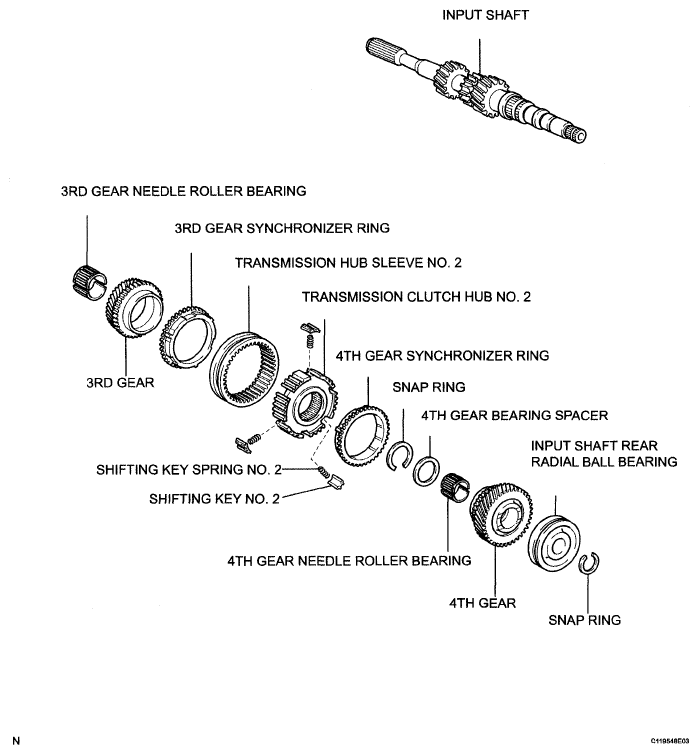

Fig 1: Exploded View Of Input Shaft

G05234768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
