Occupant Classification Ecu: Components

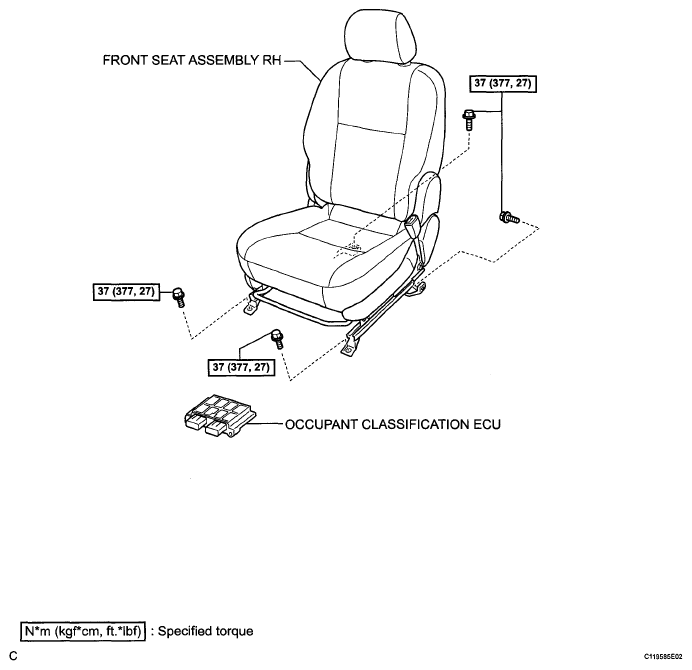

Fig 1: Occupant Classification ECU Replacement Components With Torque Specifications

G05236660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
