Unlock Warning Switch Circuit: Wiring Diagram

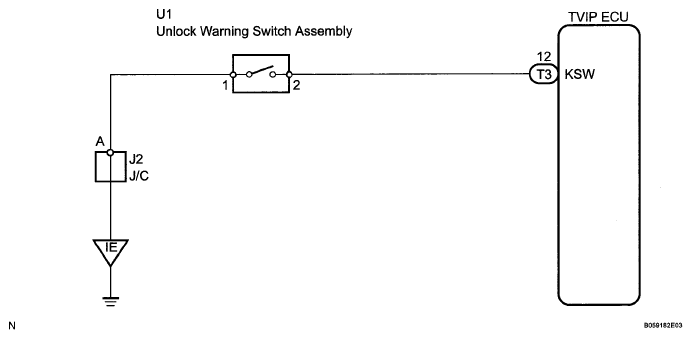

Fig 1: Unlock Warning Switch Wiring Diagram

G05236755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
