Ignition Switch Circuit: Wiring Diagram

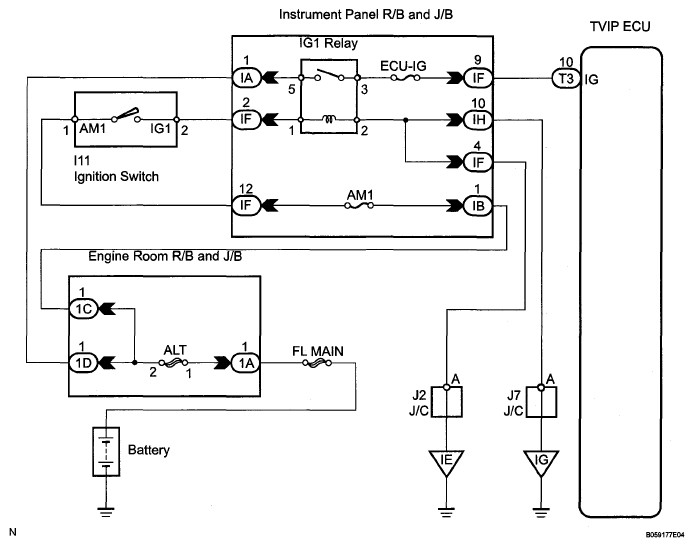

Fig 1: Ignition Switch Wiring Diagram

G05236714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
