Inspection Procedure

1. Connect the battery's positive (+) lead to the terminal, and the negative (-) lead to the horn body.
2. Check that the horn sounds.

   Standard:

   Horn sounds

NG: REPLACE LOW PITCHED HORN ASSEMBLY

Fig 1: Inspecting Low Pitched Horn Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Remove the HORN relay from the engine room R/B.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   3 - 5	10 kΩ or higher
   3 - 5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

NG: REPLACE HORN RELAY

Fig 2: Identifying Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Remove the HORN relay from the engine room R/B.
2. Disconnect the T3 TVIP ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   HORN (T3-5) - R/B HORN relay terminal 2	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

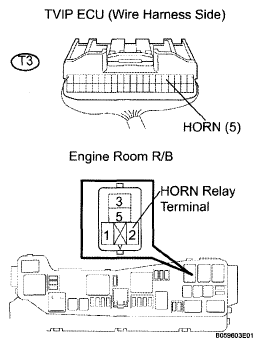

Fig 3: Identifying TVIP ECU Connector And HORN Relay Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Remove the HORN relay from the engine room R/B.
2. Disconnect the HORN connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   R/B HORN relay terminal 3 - HORN (H6-1)	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

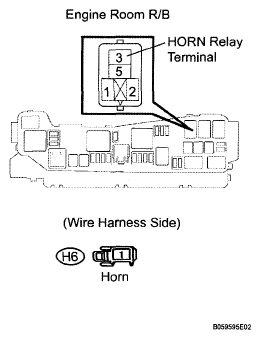

Fig 4: Identifying HORN Relay Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE TVIP ECU
