Door Unlock Detection Switch Circuit: Wiring Diagram

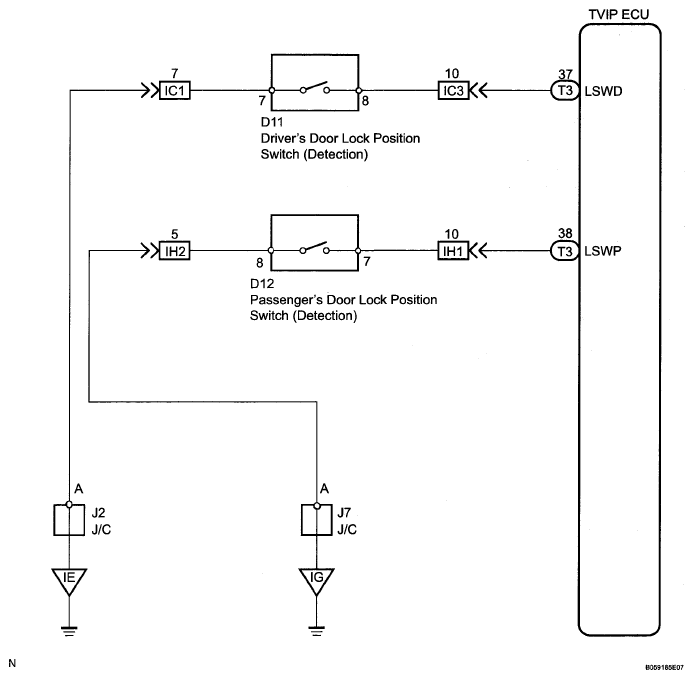

Fig 1: Door Unlock Detection Switch Wiring Diagram

G05236742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
