Cruise Main indicator Light Circuit: Wiring Diagram

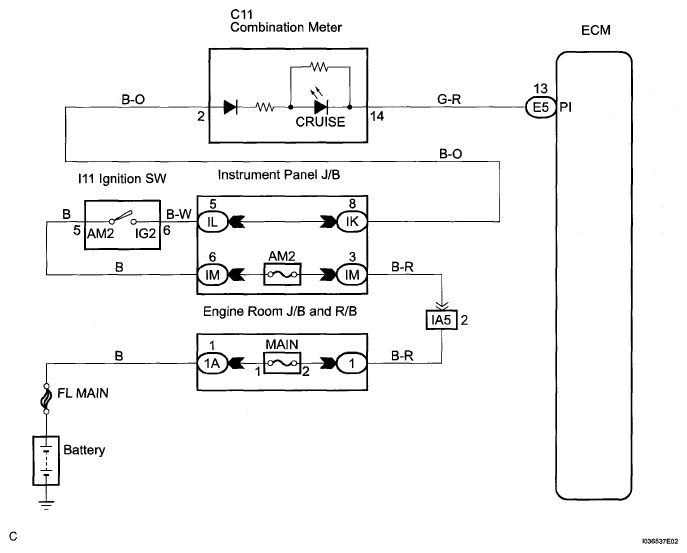

Fig 1: Cruise Main Indicator Light Wiring Diagram

G05236829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
