Clutch Switch Circuit: Wiring Diagram

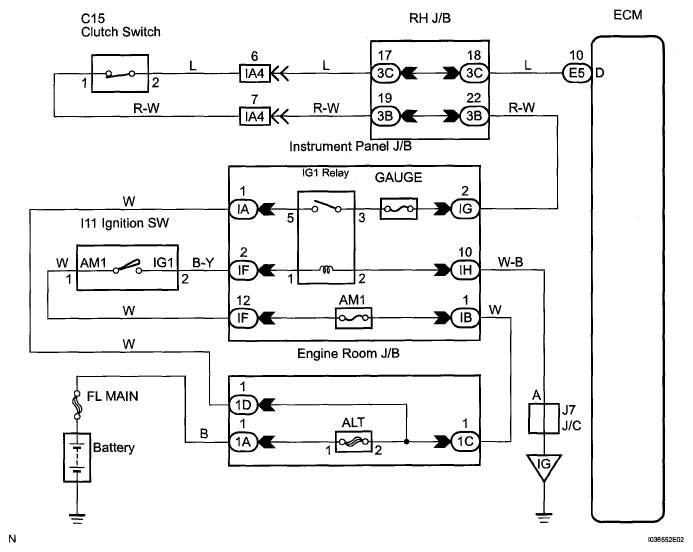

Fig 1: Clutch Switch Wiring Diagram

G05236819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
