VVT Sensor: Components

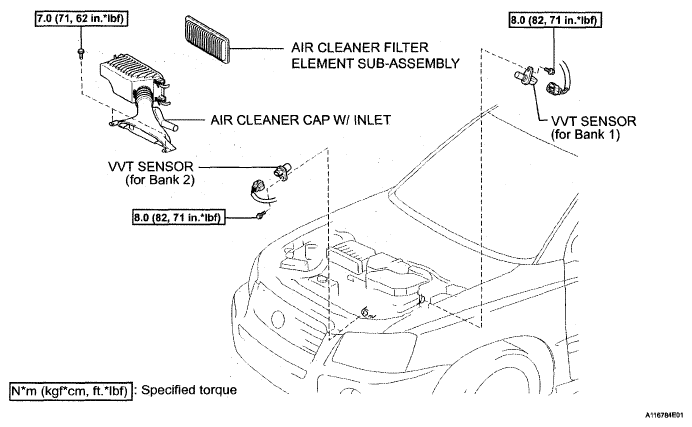

Fig 1: VVT Sensor Replacement Components With Torque Specifications

G05201133

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
