Skid Control Ecu: Components

WARNING: This page is about a different variant/trim than selected.

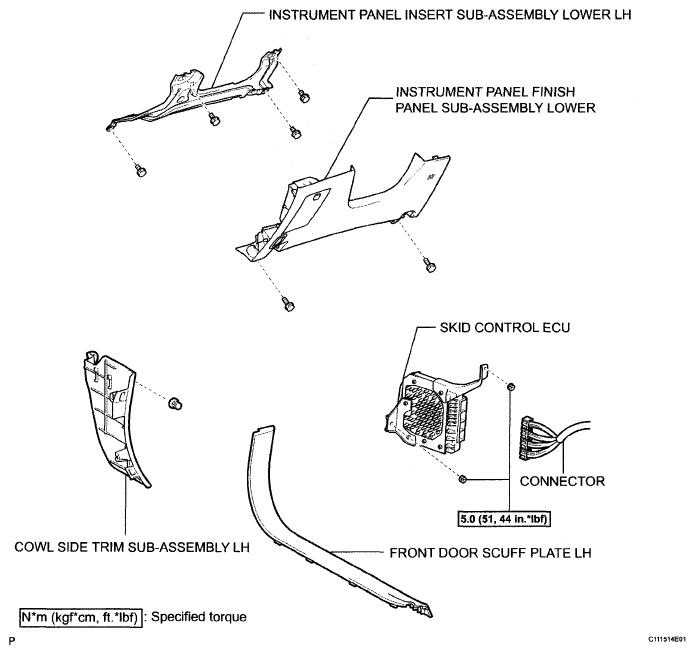

Fig 1: Identifying Skid Control ECU Replacement Components With Torque Specification
G05202839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
